RL204, RL201 - 1.0 SILICON RECTIFIERS

RL204 Description

RL201-RL207 Technical Data Data Sheet N0559, Rev.A RL201-RL207 1.0 SILICON RECTIFIERS .

RL204 Features

* DO-15
* Diffused Junction
* Low Forward Voltage Drop
* High Current Capability
* High Reliability
* High Surge Current Capability
* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot
* Additional testing can be offered upon request Ci

RL204 Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co. , Ltd be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RL204, RL201. Please refer to the document for exact specifications by model.

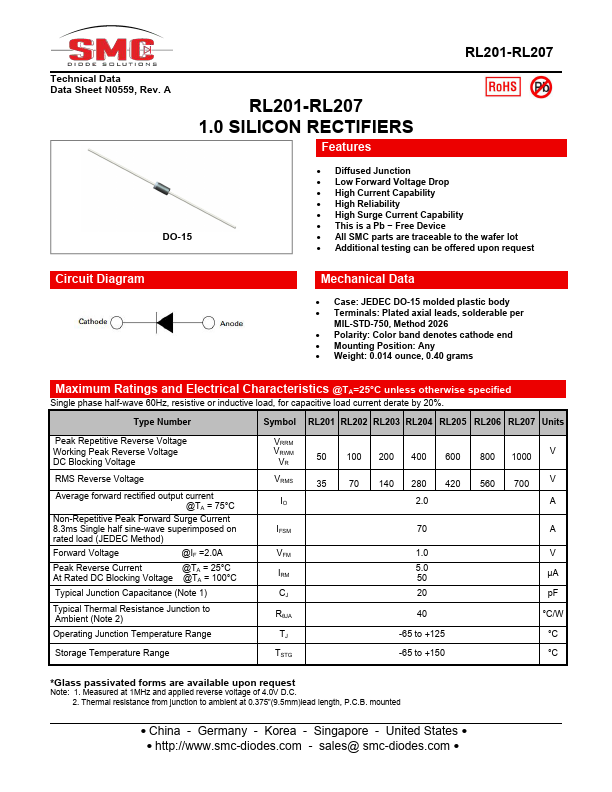

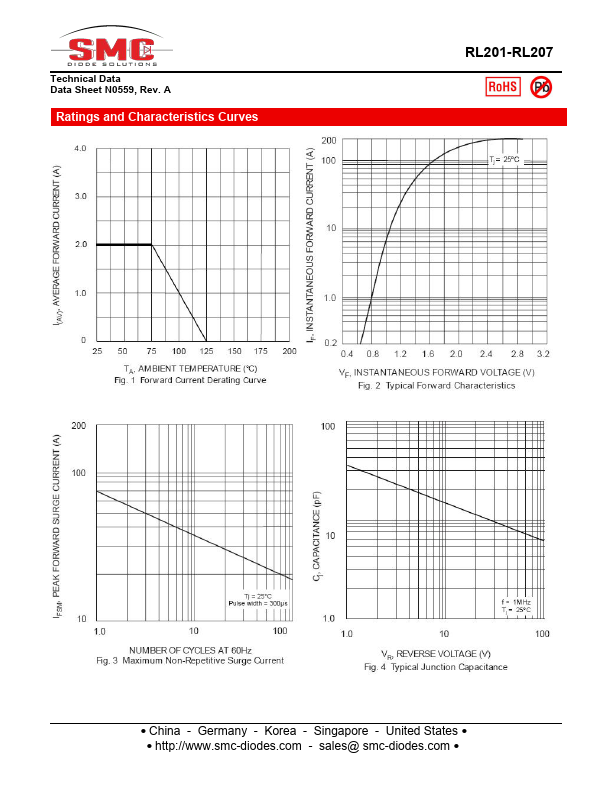

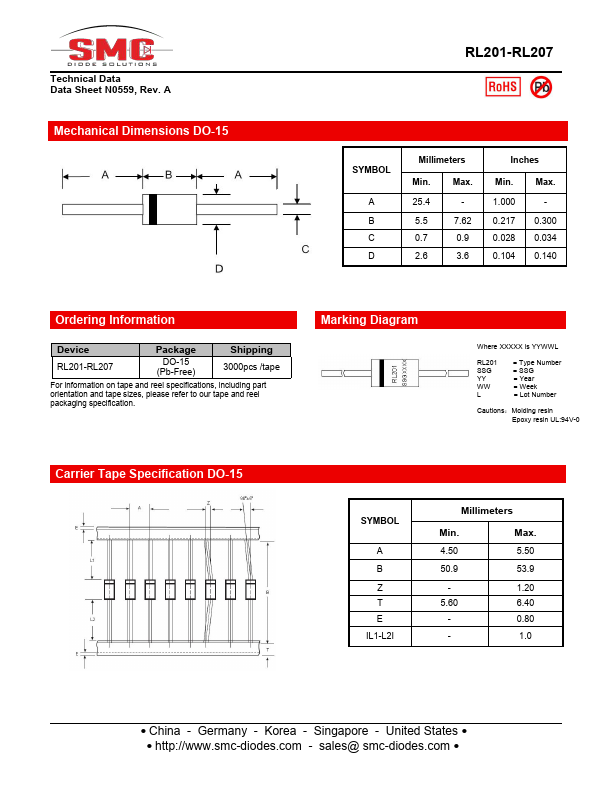

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RL204, RL201
Manufacturer
SMC Diode
File Size
317.39 KB
Datasheet
RL201-SMCDiode.pdf
Description
1.0 SILICON RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: RL204, RL201.
Please refer to the document for exact specifications by model.
