S16C05-8

TVS ARRAY

S16C05-8 Features

* Protects 3.3, 5, 12, 15, 24 V Components

* Bidirectional

* Provides Electrically Isolated Protection

* 300 W @ 8/20 us

* Protects 8 Lines

* SO-16 Packaging

* “-A” is an AEC-Q101 qualified device

* This is a Pb - Free Device

* All SMC parts are traceabl

S16C05-8 General Description

The S16CXX-8 series of TVS array have been designed to provide bidirectional protection for sensitive electronics from damage due to voltage transients caused by electrostatic discharge (ESD), electrical fast transients (EFT), lightning and other voltage-induced transient events. The device can be u.

S16C05-8 Datasheet (320.83 KB)

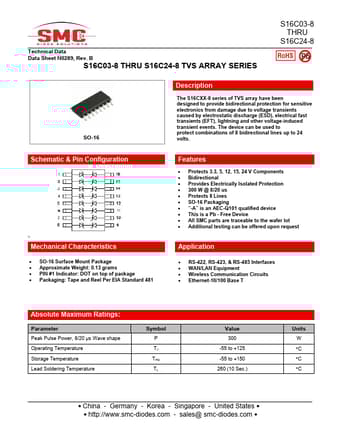

Preview of S16C05-8 PDF

Datasheet Details

Part number:

S16C05-8

Manufacturer:

SMC Diode

File Size:

320.83 KB

Description:

Tvs array.
