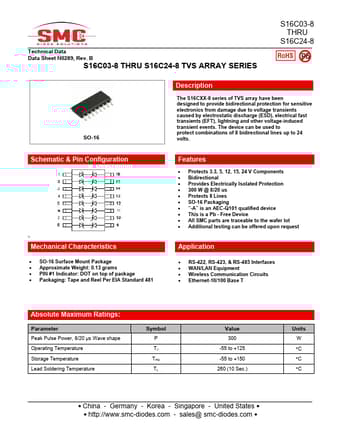

S16C12-8 Datasheet, Array, SMC Diode

S16C12-8 Features

• Array
• Protects 3.3, 5, 12, 15, 24 V Components
• Bidirectional
• Provides Electrically Isolated Protection
• 300 W @ 8/20 us
• Protects 8 Lines

PDF File Details

Part number:

S16C12-8

Manufacturer:

SMC Diode

File Size:

320.83kb

Download:

📄 Datasheet

Description:

Tvs array. The S16CXX-8 series of TVS array have been designed to provide bidirectional protection for sensitive electronics from damage due to
