S3M0040120N - 1200V SIC POWER MOSFET

Datasheet Summary

Description

S3M0040120N is single SiC Power MOSFET packaged in SOT-227 case.

The device is a high voltage n-channel Enhancement mode MOSFET that has very low total conduction losses and very stable switching characteristics over temperature extremes.

Features

  • Positive temperature characteristics, easy to parallel.
  • Low on-resistance Typ. RDS(on) = 40mΩ.
  • Fast switching speed and low switching losses.
  • Very fast and robust intrinsic body diode.
  • Process of non-bright Tin electroplatin.

📥 Download Datasheet

Datasheet preview – S3M0040120N

Datasheet Details

Part number S3M0040120N
Manufacturer SMC Diode
File Size 1.99 MB
Description 1200V SIC POWER MOSFET
Datasheet download datasheet S3M0040120N Datasheet

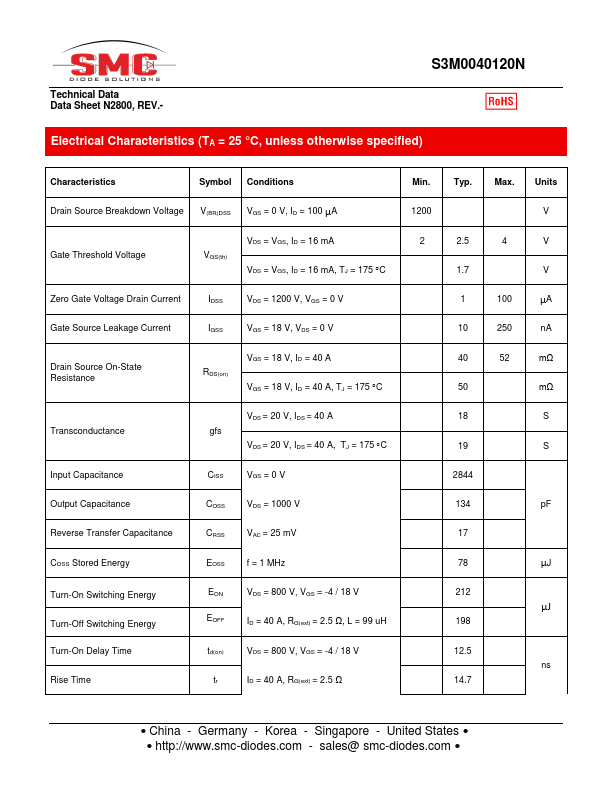

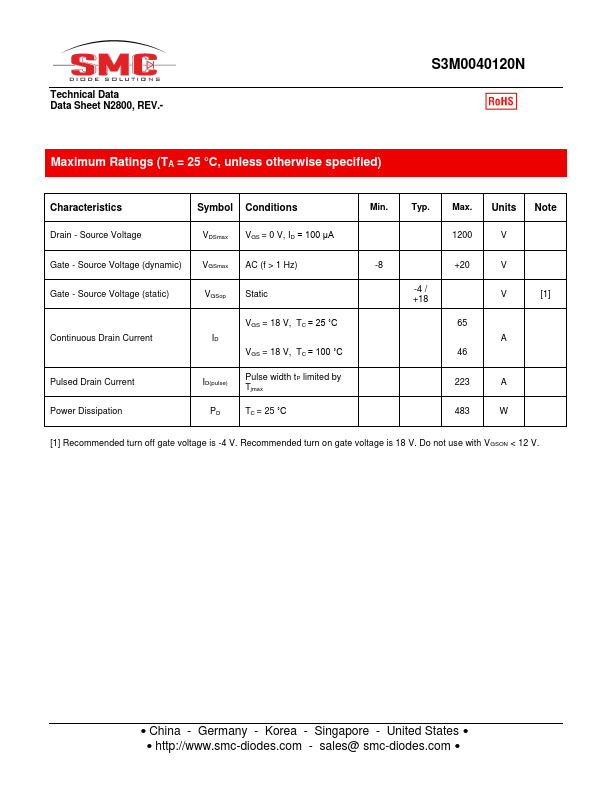

Additional preview pages of the S3M0040120N datasheet.

📁 Similar Datasheet

  • S3M - 3.0 A Surface Mount Silicon Rectifier (SEP ELECTRONIC)
  • S3M - 3.0AMPS. Surface Mount Rectifiers (LGE)
  • S3M - Surface Mount Rectifier (Taiwan Semiconductor)
  • S3M - 3.0A Surface Mount Rectifier (TAITRON)
  • S3M - General-Purpose Rectifiers (ON Semiconductor)
  • S3M - 3.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE (WON-TOP)
  • S3M - General-Purpose Rectifiers (Fairchild Semiconductor)
  • S3M - SURFACE MOUNT RECTIFIER (General Semiconductor)
  • S3M - 3 Amp Silicon Rectifier 50 to 1000 Volts (Micro Commercial Components)
  • S3M - SURFACE MOUNT RECTIFIER(VOLTAGE- 50-100 Volts CURRENT- 3.0 Ampere) (Pan Jit International Inc.)
Other Datasheets by SMC Diode

Full PDF Text Transcription

Click to expand full text

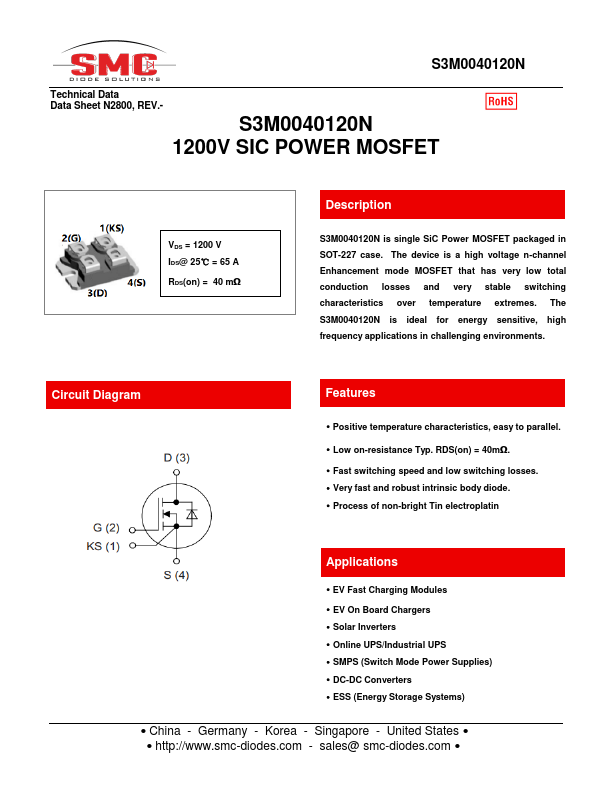

S3M0040120N Technical Data Data Sheet N2800, REV.- S3M0040120N 1200V SIC POWER MOSFET VDS = 1200 V IDS@ 25℃ = 65 A RDS(on) = 40 mΩ Description S3M0040120N is single SiC Power MOSFET packaged in SOT-227 case. The device is a high voltage n-channel Enhancement mode MOSFET that has very low total conduction losses and very stable switching characteristics over temperature extremes. The S3M0040120N is ideal for energy sensitive, high frequency applications in challenging environments. Circuit Diagram Features • Positive temperature characteristics, easy to parallel. • Low on-resistance Typ. RDS(on) = 40mΩ. • Fast switching speed and low switching losses. • Very fast and robust intrinsic body diode.
