S3M0025120B - 1200V SIC POWER MOSFET

S3M0025120B Description

S3M0025120B Technical Data Data Sheet N2840, REV.- S3M0025120B 1200V SIC POWER MOSFET VDS = 1200 V IDS@ 25℃ = 73 A RDS(on) = 25 mΩ Circuit Diagram.
S3M0025120B is a single SiC Power MOSFET packaged in T2PAK case.

S3M0025120B Features

* Positive temperature characteristics, easy to parallel.
* Low on-resistance typ. RDS(on) = 25 mΩ.
* Fast switching speed and low switching losses.
* Very fast and robust intrinsic body diode.
* Process of non-bright tin electroplatin. “-A” is an AEC-Q101 qua

📥 Download Datasheet

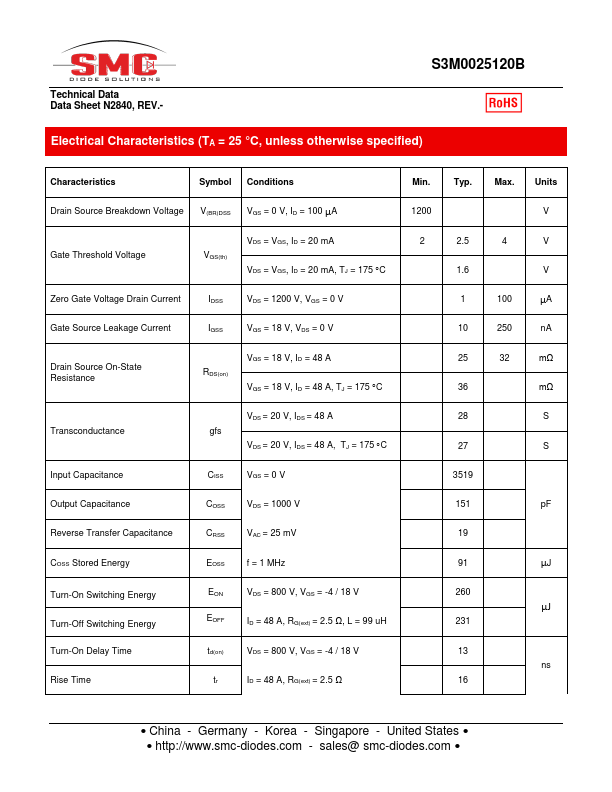

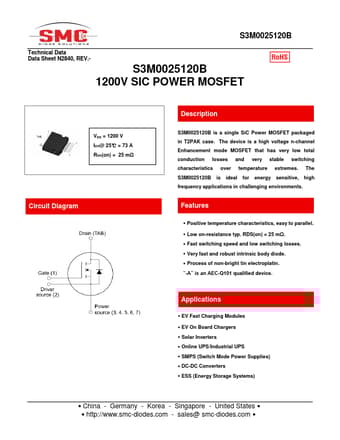

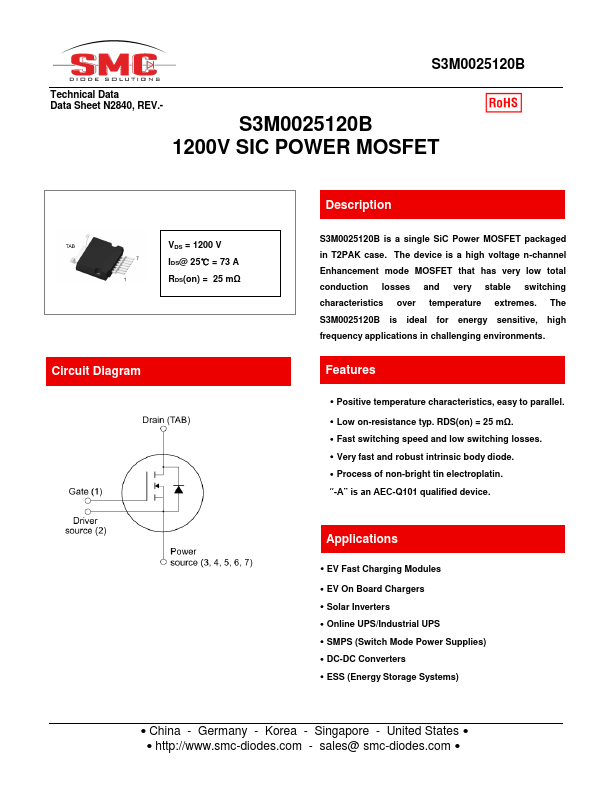

Preview of S3M0025120B PDF

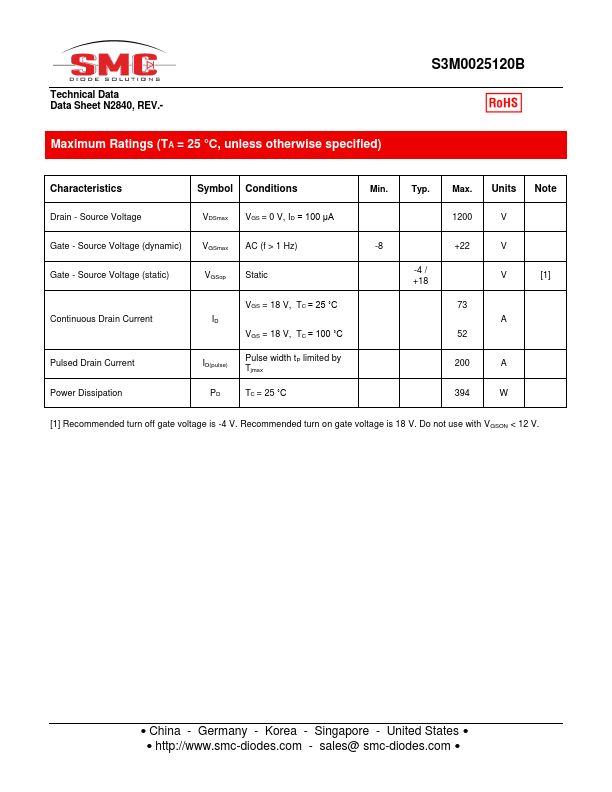

datasheet Preview Page 2 datasheet Preview Page 3
