S3M0040120B - 1200V SIC POWER MOSFET

S3M0040120B Description

S3M0040120B Technical Data Data Sheet N2841, REV.- S3M0040120B 1200V SIC POWER MOSFET VDS = 1200 V IDS@ 25℃ = 57 A RDS(on) = 40 mΩ Circuit Diagram.
S3M0040120B is a single SiC Power MOSFET packaged in T2PAK case.

S3M0040120B Features

* Positive temperature characteristics, easy to parallel.
* Low on-resistance typ. RDS(on) = 40mΩ.
* Fast switching speed and low switching losses.
* Very fast and robust intrinsic body diode.
* Process of non-bright tin electroplatin “-A” is an AEC-Q101 quali

📥 Download Datasheet

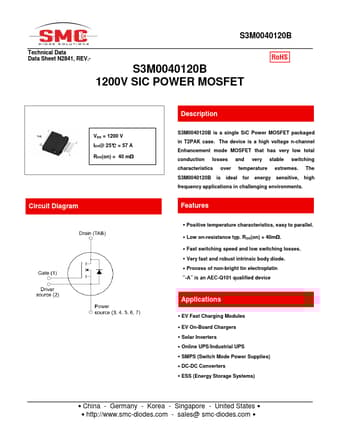

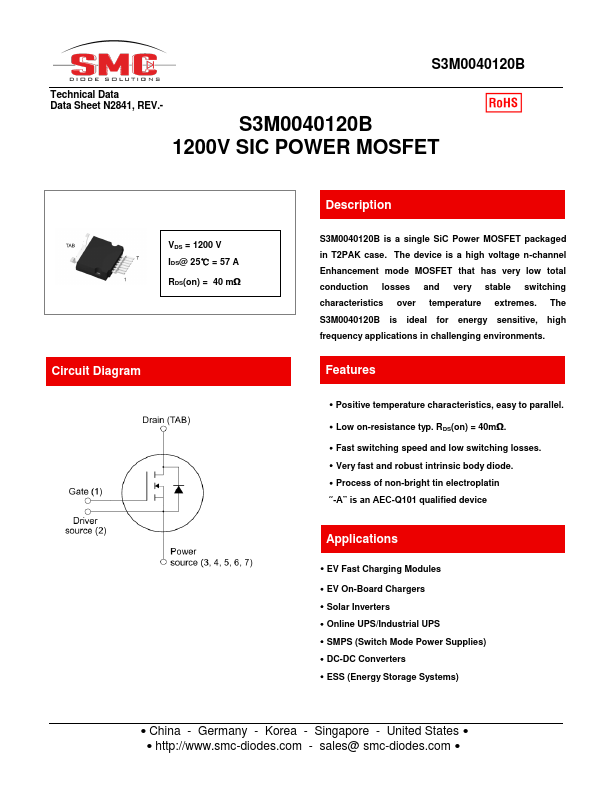

Preview of S3M0040120B PDF

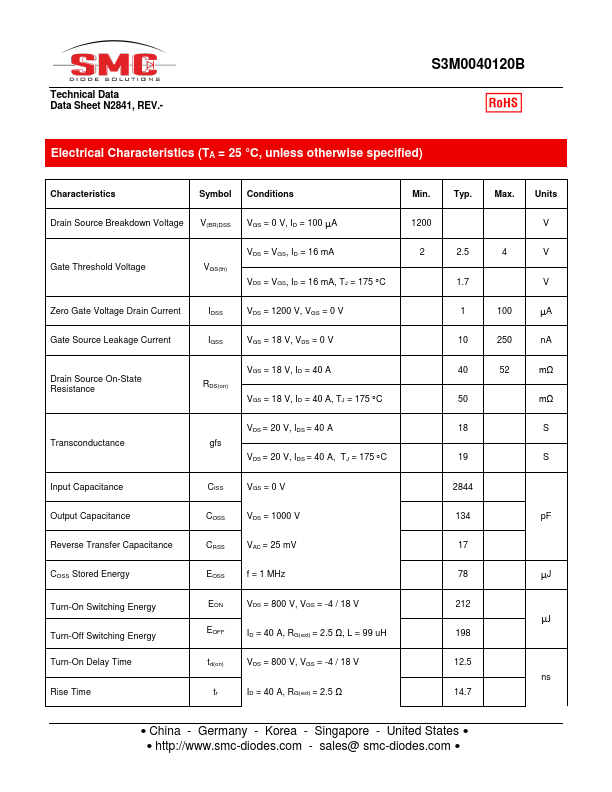

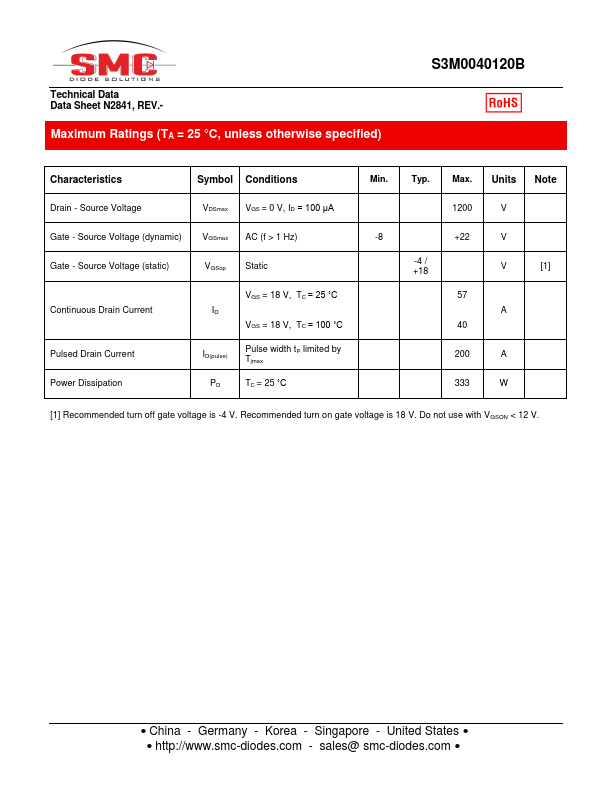

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S3M0040120B
Manufacturer
SMC Diode
File Size
2.05 MB
Datasheet
S3M0040120B-SMCDiode.pdf
Description
1200V SIC POWER MOSFET
