S4D02120T 1200V SIC POWER SCHOTTKY RECTIFIER

S4D02120T Description

S4D02120T Technical Data Data Sheet N2749, REV.- S4D02120T 1200V SIC POWER SCHOTTKY RECTIFIERS .
This 1200V 2A diode is high voltage Schottky rectifier that has very low total conduction losses and very stable switching characteristics over temper.

S4D02120T Features

* SOD-123FL
* 175°C TJ operation
* Ultra-low switching loss
* Switching speeds independent of operating temperature
* Low total conduction losses
* High forward surge current capability
* High package isolation voltage
* Terminals finish: 100% Pure Tin
* “-A” is an AE

S4D02120T Applications

* in challenging environments. Applications
* Alternative energy inverters
* Power Factor Correction (PFC)
* Free-Wheeling diodes
* Switching supply output rectification
* Reverse polarity protection
* China - Germany - Korea - Singapore - United States
* http://www

📥 Download Datasheet

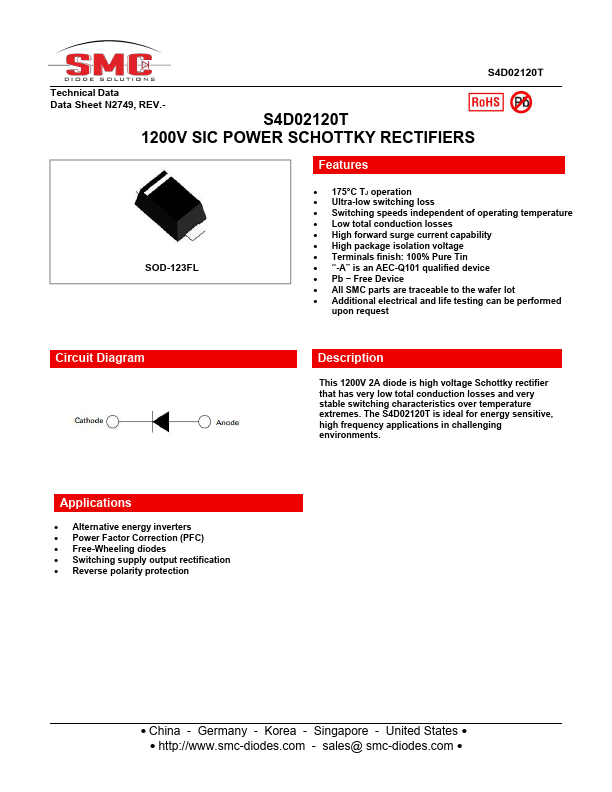

Preview of S4D02120T PDF

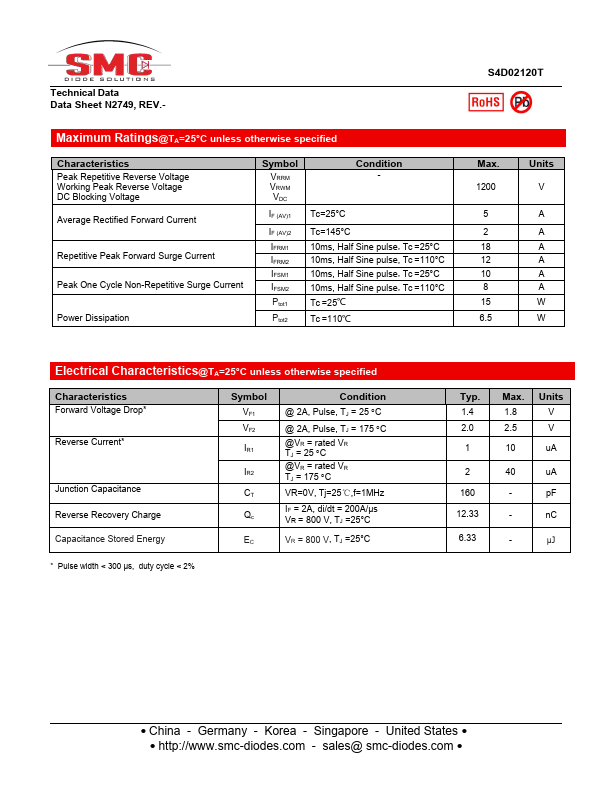

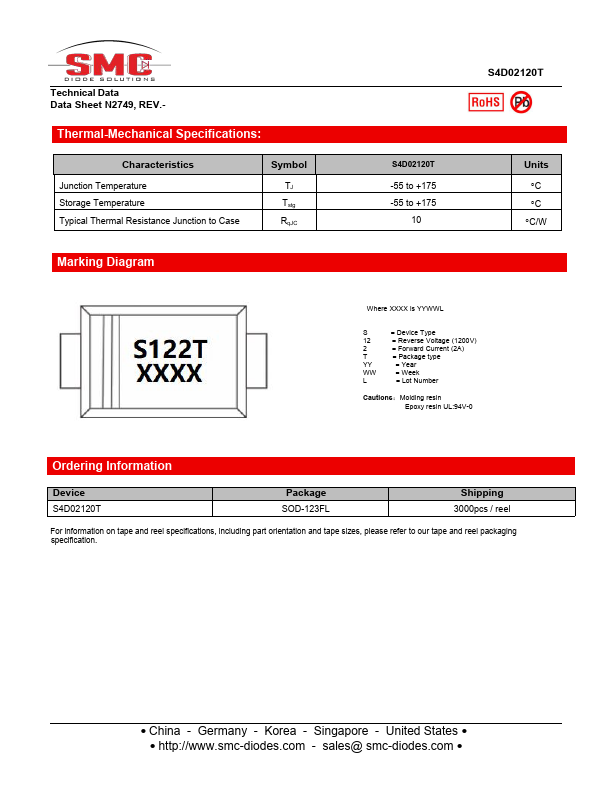

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S4D02120T
Manufacturer
SMC Diode
File Size
1.37 MB
Datasheet
S4D02120T-SMCDiode.pdf
Description
1200V SIC POWER SCHOTTKY RECTIFIER
