S4D05120E, S4D05120A 1200V SIC POWER SCHOTTKY RECTIFIER

S4D05120E Description

S4D05120A S4D05120E S4D05120G Technical Data Data Sheet N2365, REV.B S4D05120A S4D05120E S4D05120G 1200V SIC POWER SCHOTTKY RECTIFIERS .
Features S4D05120A/S4D05120E/S4D05120G are SiC Schottky rectifiers packaged in TO-220AC(TO-220-2)/DPAK(TO252-2)/D2PAK(TO-263-2) case.

S4D05120E Features

* S4D05120A/S4D05120E/S4D05120G are SiC Schottky rectifiers packaged in TO-220AC(TO-220-2)/DPAK(TO252-2)/D2PAK(TO-263-2) case. The devices are high voltage Schottky rectifiers that have very low total conduction losses and very stable switching characteristics over temperature extremes. The S4D05120A

S4D05120E Applications

* in challenging environments.
* 175°C TJ operation
* Ultra-low switching loss
* Switching speeds independent of operating temperature
* Low total conduction losses
* High forward surge current capability
* High package isolation voltage
* Terminals finish: 100% Pure Tin

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S4D05120E, S4D05120A. Please refer to the document for exact specifications by model.

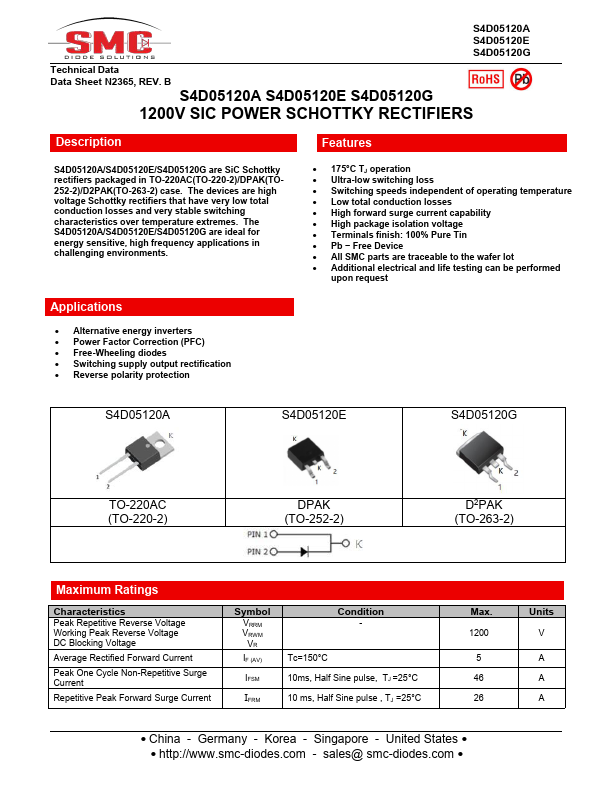

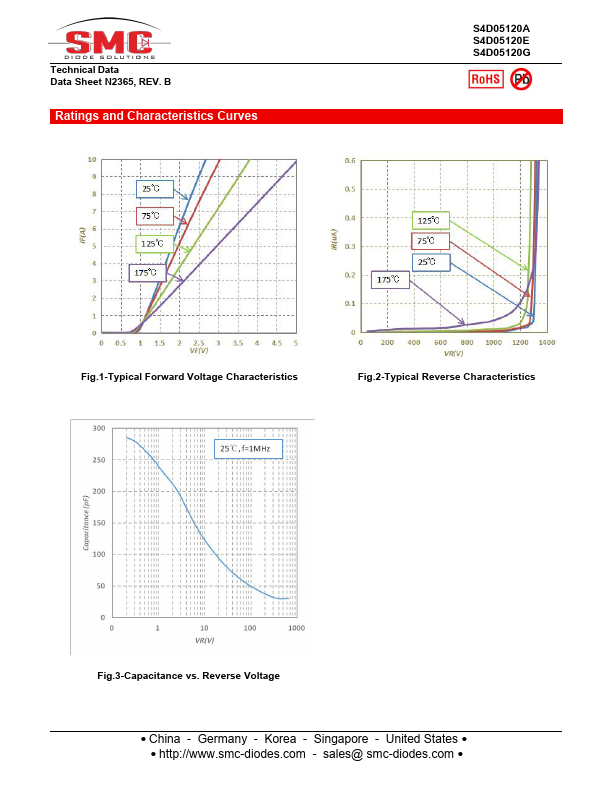

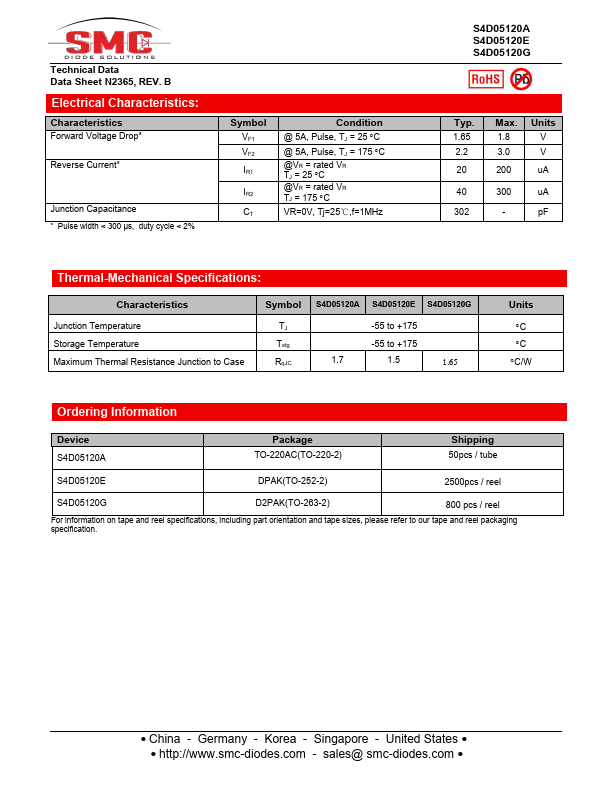

datasheet Preview Page 2 datasheet Preview Page 3
