S8MC STANDARD RECTIFIER

SMC Diode

Description

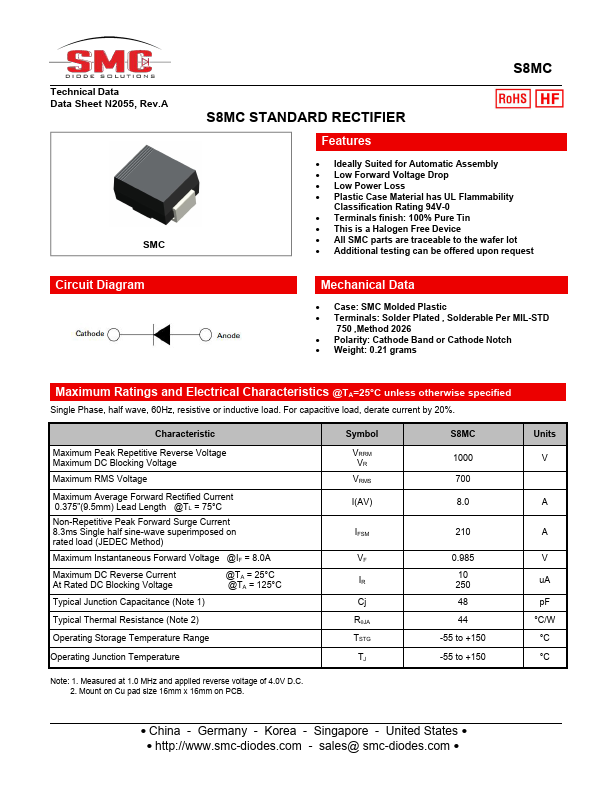

Technical Data Data Sheet N2055, Rev.A SMC Circuit Diagram S8MC S8MC STANDARD RECTIFIER .

📥 Download Datasheet

S8MC Datasheet Preview — Preview of S8MC PDF

Datasheet Specifications

Part number: S8MC
Manufacturer: SMC Diode
File Size: 266.21 KB
Datasheet: S8MC-SMCDiode.pdf
Description: STANDARD RECTIFIER

Features

* Ideally Suited for Automatic Assembly
* Low Forward Voltage Drop
* Low Power Loss
* Plastic Case Material has UL Flammability Classification Rating 94V-0
* Terminals finish: 100% Pure Tin
* This is a Halogen Free Device
* All SMC parts are traceable to the wafer lot

Applications

* of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) und
