244NQ035R-1, 244NQ035, SCHOTTKY RECTIFIER

Technical Data Data Sheet N1206, Rev.A 244NQ/R-1 244NQ035(R)-1/244NQ040(R)-1/244NQ045(R)-1 SCHOTTKY RECTIFIER PRM1-1(HALF PAK Module) .

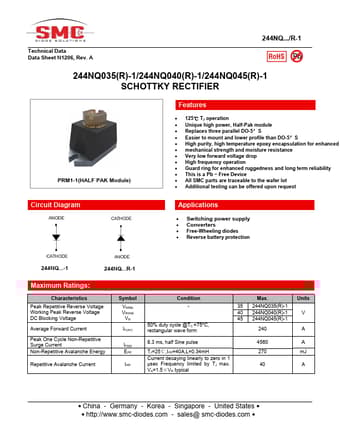

datasheet Preview Page 1 from Datasheet4u.com

244NQ035-SMC.pdf

244NQ035R-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: 244NQ035R-1, 244NQ035. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

244NQ035R-1, 244NQ035

Manufacturer:

SMC

File Size:

296.24 KB

Description:

SCHOTTKY RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: 244NQ035R-1, 244NQ035.
Please refer to the document for exact specifications by model.

Features

* 125℃ TJ operation
* Unique high power, Half-Pak module
* Replaces three parallel DO-5’S
* Easier to mount and lower profile than DO-5’S
* High purity, high temperature epoxy encapsulation for enhanced
* mechanical strength and moisture resistance
* Very low forward volt

Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection 244NQ-1 244NQR-1 Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Forward Current Peak One Cycle Non-Repetitiv
