244NQ045R-1, 244NQ035 - SCHOTTKY RECTIFIER

SMC

📥 Download Datasheet

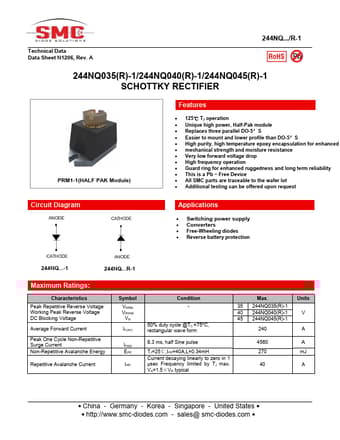

244NQ045R-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: 244NQ045R-1, 244NQ035. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	244NQ045R-1, 244NQ035
Manufacturer	SMC
File Size	296.24 KB
Description	SCHOTTKY RECTIFIER
Datasheet	244NQ035-SMC.pdf
Note	This datasheet PDF includes multiple part numbers: 244NQ045R-1, 244NQ035. Please refer to the document for exact specifications by model.

244NQ045R-1 Product details

Features

125℃ TJ operation.
Unique high power, Half-Pak module.
Replaces three parallel DO-5’S.
Easier to mount and lower profile than DO-5’S.
High purity, high temperature epoxy encapsulation for enhanced.
mechanical strength and moisture resistance.
Very low forward voltage drop.
High frequency operation.
Guard ring for enhanced ruggedness and long term reliability.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
