244NQ040R-1, 244NQ035 SCHOTTKY RECTIFIER

SMC

Description

Technical Data Data Sheet N1206, Rev.A 244NQ/R-1 244NQ035(R)-1/244NQ040(R)-1/244NQ045(R)-1 SCHOTTKY RECTIFIER PRM1-1(HALF PAK Module) .

📥 Download Datasheet

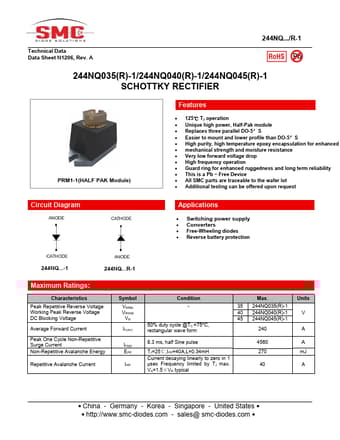

244NQ040R-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: 244NQ040R-1, 244NQ035. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 244NQ040R-1, 244NQ035
Manufacturer: SMC
File Size: 296.24 KB
Datasheet: 244NQ035-SMC.pdf
Description: SCHOTTKY RECTIFIER
Note: This datasheet PDF includes multiple part numbers: 244NQ040R-1, 244NQ035.
Please refer to the document for exact specifications by model.

Features

* 125℃ TJ operation
* Unique high power, Half-Pak module
* Replaces three parallel DO-5’S
* Easier to mount and lower profile than DO-5’S
* High purity, high temperature epoxy encapsulation for enhanced
* mechanical strength and moisture resistance
* Very low forward volt

Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection 244NQ-1 244NQR-1 Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Forward Current Peak One Cycle Non-Repetitiv
