ADM200 - Motor Operated Auto Drain

SMC

General Description

No.

Part no.

📥 Download Datasheet

ADM200 motor operated auto drain by SMC - Datasheet Preview

Datasheet Details

Part number	ADM200
Manufacturer	SMC
File Size	117.80 KB
Description	Motor Operated Auto Drain
Datasheet	ADM200 Datasheet

Full PDF Text Transcription for ADM200 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for ADM200. For precise diagrams, and layout, please refer to the original PDF.

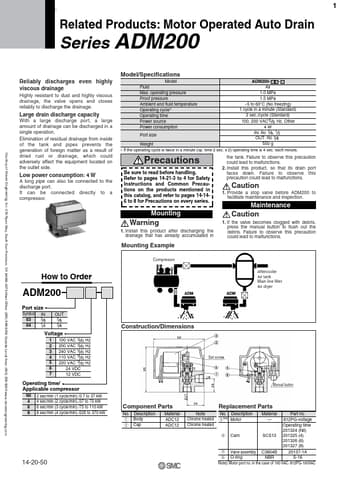

www.DataSheet4U.com 1 Related Products: Motor Operated Auto Drain Series ADM200 Model/Specifications Reliably discharges even highly viscous drainage Highly resistant to ...

View more extracted text

Reliably discharges even highly viscous drainage Highly resistant to dust and highly viscous drainage, the valve opens and closes reliably to discharge the drainage. Model Fluid Max. operating pressure Proof pressure Ambient and fluid temperature Operating cycle∗ Operating time Power source Power consumption Port size Weight ADM200Air 1.0 MPa 1.5 MPa –5 to 60°C (No freezing) 1 cycle in a minute (Standard) 2 sec./cycle (Standard) 100, 200 VAC 50 60 Hz, Other 4W IN: Rc 3 8 , 1 2 OUT: Rc 3 8 550 g Large drain discharge capacity With a large discharge port, a large amount of drainage can be discharged in a single operation.
