SS110F, SS12F - Surface Mount Schottky Barrier Rectifiers

SS110F Description

SS12F thru SS110F 20 *- 100 V 1.0A Surface Mount Schottky Barrier Rectifiers Reverse Voltage 20 to 100 V Forward Current 1.0 A .

SS110F Features

* 。High Current Capability
* 。Low Forward Voltage Drop
* : 260℃/10 High temperature soldering guaranteed: 260℃/10seconds at terminals
* RoHS 。 Lead and body according with RoHS standard Mechanical Data
* : Case: Molded plastic body
* : Terminals: Solder plated
* : Pol

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS110F, SS12F. Please refer to the document for exact specifications by model.

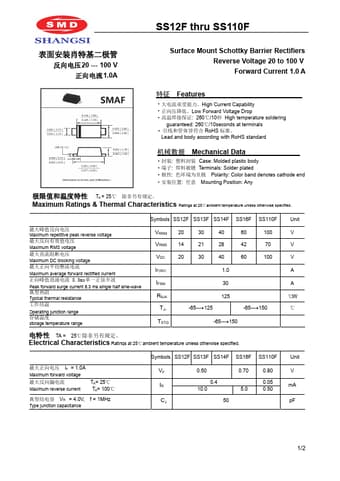

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS110F, SS12F
Manufacturer
SMD
File Size
2.64 MB
Datasheet
SS12F-SMD.pdf
Description
Surface Mount Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SS110F, SS12F.
Please refer to the document for exact specifications by model.
