SS32F - Surface Mount Schottky Barrier Rectifiers

📥 Download Datasheet

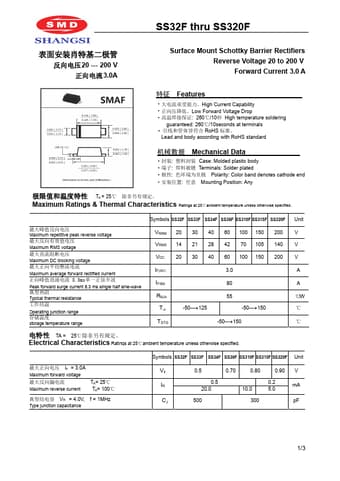

SS32F Datasheet Preview — Preview of SS32F PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SS32F
Manufacturer	SMD
File Size	2.40 MB
Description	Surface Mount Schottky Barrier Rectifiers
Datasheet	SS32F-SMD.pdf

SS32F Product details

Features

。High Current Capability.
。Low Forward Voltage Drop.
: 260℃/10 High temperature soldering guaranteed: 260℃/10seconds at terminals.
RoHS 。 Lead and body according with RoHS standard Mechanical Data.
: Case: Molded plastic body.
: Terminals: Solder plated.
: Polarity: Color band denotes cathode end.
: Mounting Position: Any TA = 25℃ 。 Maximum Ratings & Thermal Characteristics Ratings at 25℃ambient temperature unless otherwise specified. Symbols SS32F.
