SS36F

The SS36F is Surface Mount Schottky Barrier Rectifiers designed by SMD.

Product Overview

📥 Download Datasheet

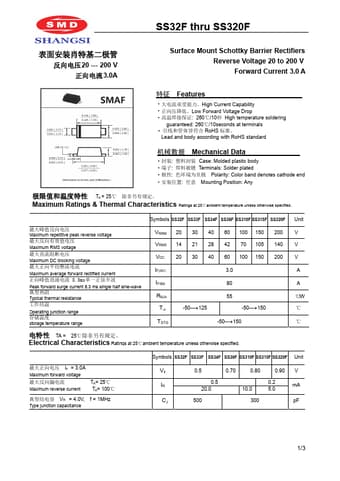

SS36F Surface Mount Schottky Barrier Rectifiers by SMD - Datasheet Preview — Datasheet preview – SS36F

Datasheet Details

Part number	SS36F, SS32F
Manufacturer	SMD
File Size	2.40 MB
Description	Surface Mount Schottky Barrier Rectifiers
Datasheet	SS32F-SMD.pdf
Note	This datasheet PDF includes multiple part numbers: SS36F, SS32F. Please refer to the document for exact specifications by model.
Additional preview pages of the SS36F datasheet.

Product details

Features

。High Current Capability.
。Low Forward Voltage Drop.
: 260℃/10 High temperature soldering guaranteed: 260℃/10seconds at terminals.
RoHS 。 Lead and body according with RoHS standard Mechanical Data.
: Case: Molded plastic body.
: Terminals: Solder plated.
: Polarity: Color band denotes cathode end.
: Mounting Position: Any TA = 25℃ 。 Maximum Ratings & Thermal Characteristics Ratings at 25℃ambient temperature unless otherwise specified. Symbols SS32F.
