IRCC2.0, IRCC20 Datasheet - SMSC Corporation

IRCC2.0 Infrared Communications Controller

This document describes the Infrared Communications Controller (IrCC 2.0) function, which is common to a number of SMSC products. The IrCC 2.0 consists of two main architectural blocks: the ACE 16C550A UART and a Synchronous Communications Engine (SCE) (Figure 2). It’s own unique register set suppor.

IRCC2.0 Features

* Multi-Protocol Serial Communications Controller Full IrDA v1.1 Implementation: 2.4 kbps 115.2 kbps, 0.576 Mbps, 1.152 Mbps and 4 Mbps Consumer Infrared (Remote Control) Interface SHARP Amplitude Shift Keyed Infrared (ASK IR) Interface Direc

IRCC20_SMSCCorporation.pdf

This datasheet PDF includes multiple part numbers: IRCC2.0, IRCC20. Please refer to the document for exact specifications by model.

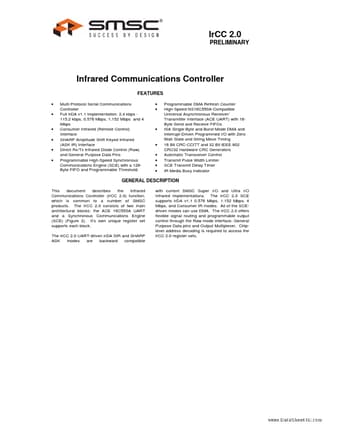

IRCC2.0 Datasheet Preview Page 2 IRCC2.0 Datasheet Preview Page 3

Datasheet Details

Part number:

IRCC2.0, IRCC20

Manufacturer:

SMSC Corporation

File Size:

504.17 KB

Description:

Infrared communications controller.

Note:

This datasheet PDF includes multiple part numbers: IRCC2.0, IRCC20.
Please refer to the document for exact specifications by model.
