SN68004

Speech Controller

SN68004 Features

* Single power supply 2.4V - 5.1V Built in a tiny controller 4 seconds voice capacity are provided Two 4-bit I/O ports are provided 64

* 4 bits RAM are provided Maximum 16k program ROM is provided Readable ROM code data Built in

SN68004 General Description

Bit0 of I/O port 2 Bit1 of I/O port 2 Bit2 of I/O port 2 Bit3 of I/O port 2 Bit0 of I/O port 3 Bit1 of I/O port 3 Bit2 of I/O port 3 Bit3 of I/O port 3 Positive power supply Oscillation component connection pin For testing only Negative power supply D/A current output 2 December 20, 2000 SN68004 .

SN68004 Datasheet (111.19 KB)

Preview of SN68004 PDF

Datasheet Details

Part number:

SN68004

Manufacturer:

SONiX Technology Company

File Size:

111.19 KB

Description:

Speech controller.

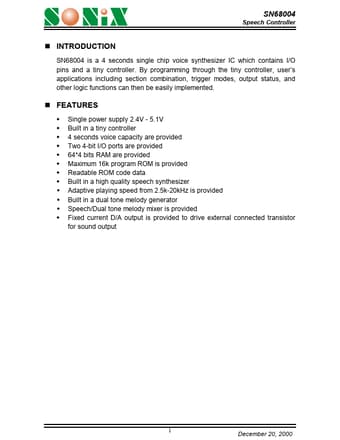

SN68004 Speech Controller INTRODUCTION SN68004 is a 4 seconds single chip voice synthesizer IC which contains I/O pins and a tiny controlle.
