SN68020

Speech Controller

SN68020 Features

* Single power supply 2.4V - 5.1V Built in a tiny controller 20 seconds voice capacity are provided One 4-bit input port and two 4-bit I/O ports are provided 64

* 4 bits RAM are provided Maximum 16k program ROM is provided

SN68020 General Description

Bit0 of input port 1 Bit1 of input port 1 Bit2 of input port 1 Bit3 of input port 1 Bit0 of I/O port 2 Bit1 of I/O port 2 Bit2 of I/O port 2 Bit3 of I/O port 2 Bit0 of I/O port 3 Bit1 of I/O port 3 Bit2 of I/O port 3 Bit3 of I/O port 3 Positive power supply Oscillation component connection pin For t.

SN68020 Datasheet (104.18 KB)

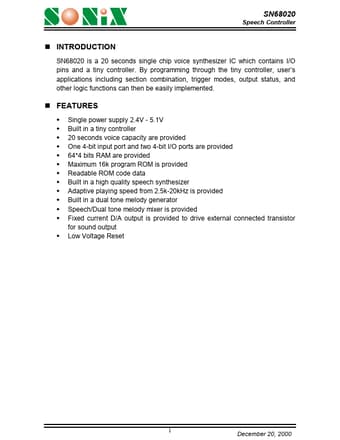

Preview of SN68020 PDF

Datasheet Details

Part number:

SN68020

Manufacturer:

SONiX Technology Company

File Size:

104.18 KB

Description:

Speech controller.
SN68020 Speech Controller INTRODUCTION SN68020 is a 20 seconds single chip voice synthesizer IC which contains I/O pins and a tiny controll.
