SN68120

Speech Controller

SN68120 Features

* Single power supply 2.4V - 5.1V Built in a tiny controller 120 seconds voice capacity are provided Two 4-bit I/O ports and two 4-bit output ports are provided 64

* 4 bits RAM are provided Maximum 16k program ROM is provi

SN68120 General Description

Bit0 of I/O port 2 Bit1 of I/O port 2 Bit2 of I/O port 2 Bit3 of I/O port 2 Bit0 of I/O port 3 Bit1 of I/O port 3 Bit2 of I/O port 3 Bit3 of I/O port 3 Bit0 of output port 4 Bit1 of output port 4 Bit2 of output port 4 Bit3 of output port 4 Bit0 of output port 5 Bit1 of output port 5 Bit2 of output p.

SN68120 Datasheet (104.54 KB)

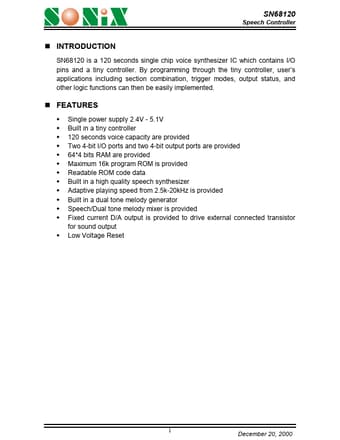

Preview of SN68120 PDF

Datasheet Details

Part number:

SN68120

Manufacturer:

SONiX Technology Company

File Size:

104.54 KB

Description:

Speech controller.
SN68120 Speech Controller INTRODUCTION SN68120 is a 120 seconds single chip voice synthesizer IC which contains I/O pins and a tiny control.
