S25FS256S - MirrorBit Flash Non-Volatile Memory

Product Overview

SPANSION

Part number	S25FS256S
Manufacturer	SPANSION
File Size	1.67 MB
Description	MirrorBit Flash Non-Volatile Memory

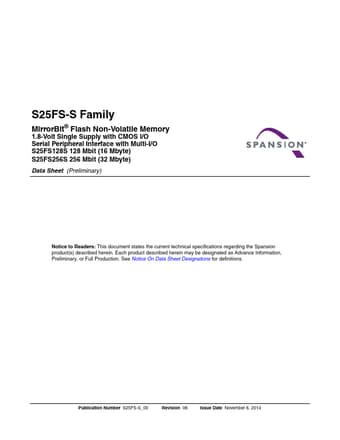

Datasheet	S25FS256S Datasheet
Note	This datasheet PDF includes multiple part numbers: S25FS256S, S25FS128S. Please refer to the document for exact specifications by model.
Additional preview pages of the S25FS256S datasheet.

of Spansion data sheet designations are presented here to highlight their presence and definitions.

Density.
128 Mbits (16 Mbytes).
256 Mbits (32 Mbytes).
Serial Peripheral Interface (SPI).
SPI Clock polarity and phase modes 0 and 3.
Double Data Rate (DDR) option.
Extended Addressing: 24- or 32-bit address options.
Serial Command subset and footprint compatible with S25FL-A, S25FL-K, S25FL-P, and S25FL-S SPI families.
Multi I/O Command subset and footprint compatible with S25FL-P, and S25FL-S SPI families.
Read.
