S25FL032P

32-Mbit 3.0 V Flash Memory

S25FL032P Features

* Memory protection

* W#/ACC pin works in conjunction with Status Register Bits

* One time programmable (OTP) area for permanent, secure to protect specified memory areas identification; can be programmed and locked at the factory or by the customer

* Status Register Bloc

S25FL032P General Description

The S25FL032P is a 3.0 V (2.7 V to 3.6 V), single-power-supply Flash memory device. The device consists of 64 uniform 64-KB sectors with the two (top or bottom) 64-KB sectors further split up into thirty-two 4-KB sub sectors. The S25FL032P device is fully backward compatible with the S25FL032A devic.

S25FL032P Datasheet (1.47 MB)

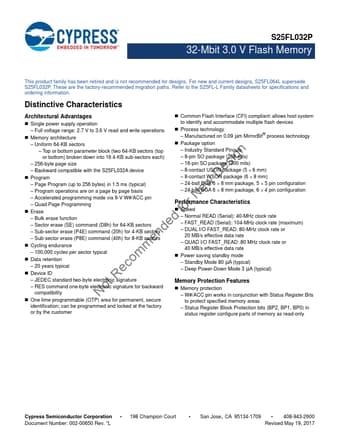

Preview of S25FL032P PDF

Datasheet Details

Part number:

S25FL032P

Manufacturer:

Cypress

File Size:

1.47 MB

Description:

32-mbit 3.0 v flash memory.
S25FL032P 32-Mbit 3.0 V Flash Memory This product family has been retired and is not recommended for designs. For new and current designs, S25FL064L .
