S25FL002D - (S25FL001D / S25FL002D) Flash Memory

Datasheet Summary

Description

The S25FL002D and S25FL001D devices are 3.0 Volt (2.7 V to 3.6 V) single power supply Flash memory devices.

S25FL002D consists of four sectors, each with 512 Kb memory.

S25FL001D consists of four sectors, each with 256 Kb memory.

Features

  • Memory Protection.
  • W# pin works in conjunction with Status Register Bits to protect specified memory areas.
  • Status Register Block Protection bits (BP1, BP0) in status register configure parts of memory as readonly.

📥 Download Datasheet

Datasheet preview – S25FL002D

Datasheet Details

Part number S25FL002D
Manufacturer SPANSION
File Size 609.85 KB
Description (S25FL001D / S25FL002D) Flash Memory
Datasheet download datasheet S25FL002D Datasheet
Additional preview pages of the S25FL002D datasheet.

📁 Similar Datasheet

  • S25FL032P - 32-Mbit 3.0 V Flash Memory (Cypress)
  • S25FL064L - 64-Mbit (8-Mbyte) 3.0V FL-L SPI Flash Memory (Cypress)
  • S25FL064L - 64Mb (8MB) FL-L Flash Memory (Infineon)
  • S25FL064P - 64-Mbit 3.0 V SPI Flash Memory (Cypress)
  • S25FL116K - 3.0V SPI Flash Memory (Cypress Semiconductor)
  • S25FL127S - 128 Mbit (16 Mbyte) 3.0V SPI Flash Memory (Cypress Semiconductor)
  • S25FL127S - 128Mb (16MB) FL-S Flash (Infineon)
  • S25FL128L - 3.0V FL-L Flash Memory (Cypress)
  • S25FL128L - FL-L flash (Infineon)
  • S25FL128P - 128-Mb 3.0 V Flash Memory (Cypress Semiconductor)
Other Datasheets by SPANSION
  • S25FL001D - (S25FL001D / S25FL002D) Flash Memory
  • S25FL004A - Flash Memory
  • S25FL004D - Flash Memory
  • S25FL004K - 4-Mbit / 8-Mbit / 16-Mbit CMOS 3.0 Volt Flash Memory
  • S25FL008A - Flash Memory
  • S25FL008K - 4-Mbit / 8-Mbit / 16-Mbit CMOS 3.0 Volt Flash Memory
  • S25FL016A - 16 Megabit CMOS 3.0 Volt Flash Memory
  • S25FL016K - 4-Mbit / 8-Mbit / 16-Mbit CMOS 3.0 Volt Flash Memory

Full PDF Text Transcription

Click to expand full text

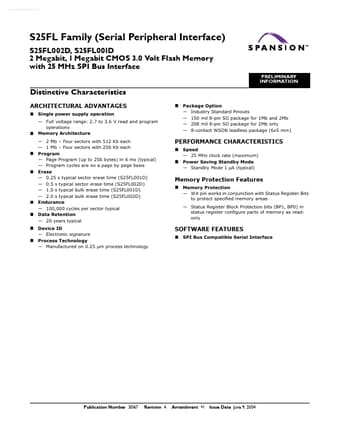

www.DataSheet4U.com S25FL Family (Serial Peripheral Interface) S25FL002D, S25FL001D 2 Megabit, 1 Megabit CMOS 3.0 Volt Flash Memory with 25 MHz SPI Bus Interface PRELIMINARY INFORMATION Distinctive Characteristics ARCHITECTURAL ADVANTAGES „ Single power supply operation — Full voltage range: 2.7 to 3.6 V read and program operations Memory Architecture — 2 Mb – Four sectors with 512 Kb each — 1 Mb – Four sectors with 256 Kb each Program — Page Program (up to 256 bytes) in 6 ms (typical) — Program cycles are on a page by page basis Erase — 0.25 s typical sector erase time (S25FL001D) — 0.5 s typical sector erase time (S25FL002D) — 1.0 s typical bulk erase time (S25FL001D) — 2.
