S25FL128P - 128-Mb 3.0 V Flash Memory

Datasheet Summary

Description

The S25FL128P is a 3.0 Volt (2.7V to 3.6V), single-power-supply Flash memory device.

The device consists of 64 sectors of 256 KB memory, or 256 sectors of 64 KB memory.

The device accepts data written to SI (Serial Input) and outputs data on SO (Serial Output).

Features

  • Memory Protection.
  • WP#/ACC pin works in conjunction with Status Register Bits to protect specified memory areas.
  • 256 KB uniform sector product: Status Register Block Protection bits (BP2, BP1, BP0) in status register configure parts of memory as read-only.
  • 64KB uniform sector product: Status Register Block Protection bits (BP3, BP2, BP1, BP0) in status register configure parts of memory as read-only Software Features.
  • SPI Bus Compatible Serial Interface.

📥 Download Datasheet

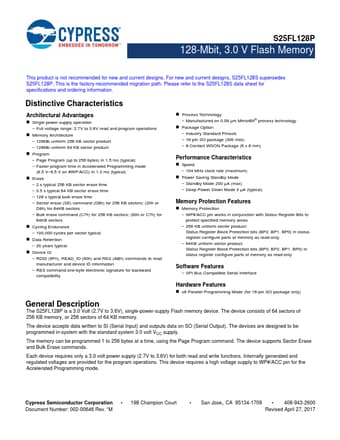

Datasheet preview – S25FL128P

Datasheet Details

Part number S25FL128P
Manufacturer Cypress Semiconductor
File Size 1.10 MB
Description 128-Mb 3.0 V Flash Memory
Datasheet download datasheet S25FL128P Datasheet
Additional preview pages of the S25FL128P datasheet.

📁 Similar Datasheet

  • S25FL128P - 128 Megabit CMOS 3.0 Volt Flash Memory (SPANSION)
  • S25FL128K - 128-Mbit CMOS 3.0 Volt Flash Memory (SPANSION)
  • S25FL128L - 3.0V FL-L Flash Memory (Cypress)
  • S25FL128L - FL-L flash (Infineon)
  • S25FL128S - 3.0V SPI Flash Memory (Cypress)
  • S25FL128S - Flash Non-Volatile Memory CMOS Core (SPANSION)
  • S25FL128S - 128Mb (16MB) FL-S Flash (Infineon)
  • S25FL127S - 128 Mbit (16 Mbyte) MirrorBit Flash Non-Volatile Memory (SPANSION)
  • S25FL127S - 128Mb (16MB) FL-S Flash (Infineon)
  • S25FL129P - 128-Mbit CMOS 3.0 Volt Flash Memory (SPANSION)
Other Datasheets by Cypress Semiconductor

Full PDF Text Transcription

Click to expand full text
S25FL128P 128-Mbit, 3.0 V Flash Memory This product is not recommended for new and current designs. For new and current designs, S25FL128S supersedes S25FL128P. This is the factory-recommended migration path. Please refer to the S25FL128S data sheet for specifications and ordering information. Distinctive Characteristics Architectural Advantages  Single power supply operation – Full voltage range: 2.7V to 3.6V read and program operations  Memory Architecture – 128Mb uniform 256 KB sector product – 128Mb uniform 64 KB sector product  Program – Page Program (up to 256 bytes) in 1.5 ms (typical) – Faster program time in Accelerated Programming mode (8.5 V–9.5 V on #WP/ACC) in 1.2 ms (typical)  Erase – 2 s typical 256 KB sector erase time – 0.
