S29AL016D Datasheet - SPANSION

S29AL016D - 16 MEGABIT CMOS 3.0 VOLT ONLY BOOT SECTOR FLASH MEMORY

The S29AL016D is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words.

The device is offered in 48-ball FBGA, and 48-pin TSOP packages.

The word-wide data (x16) appears on DQ15 *DQ0; the byte-wide (x8) data appears on DQ7 *DQ0.

This device is designed t

www.DataSheet4U.com S29AL016D 16 Megabit (2 M x 8-Bit/1 M x 16-Bit) CMOS 3.0 Volt-only Boot Sector Flash Memory Data Sheet PRELIMINARY Distinctive Characteristics Architectural Advantages Single power supply operation Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications Ultra low power consumption (typical values at 5 MHz) 200 nA Automatic Sleep mode current 200 nA standby mode current 9 mA r

S29AL016D Features

* A hardware method of locking a sector to prevent any program or erase operations within that sector

* Sectors can be locked in-system or via programming equipment

* Temporary Sector Unprotect feature allows code changes in previously locked sectors Software Features

S29AL016D_SPANSION.pdf

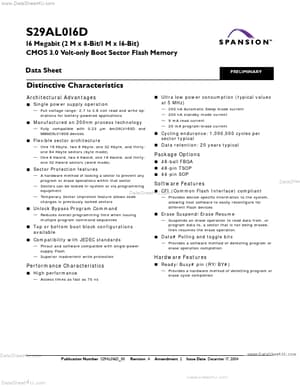

Preview of S29AL016D PDF
S29AL016D Datasheet Preview Page 2 S29AL016D Datasheet Preview Page 3

Datasheet Details

Part number:

S29AL016D

Manufacturer:

SPANSION

File Size:

1.22 MB

Description:

16 megabit cmos 3.0 volt only boot sector flash memory.
