2N3021, 2N3163 Datasheet - SSDI

2N3021 PNP Transistor

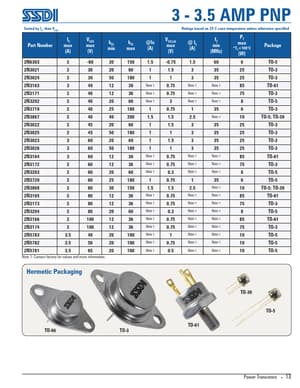

3 - 3.5 AMP PNP Sorted by IC, then VCEO Part Number mIaCx (A) mVCaExO (V) Ratings based on 25˚C case temperature unless otherwise specified mhFiEn mhaFEx @Ic (A) VmCEa(sxat) (V) @(A)IC mfTin (MHz) mPaTx TC=100°C (W) Package 2N6303 3 -80 30 150 1.5 -0.75 1.5 60 6 TO-5 2N3021 3 30 20 60 1 1.5 3 35 25 TO-3 2N3024 3 30 50 180 1 1 3 35 25 TO-3 2N3163 3 40 12 36 Note 1 0.75 Note 1 Note 1 85 TO-61 2N3171 3 40 12 36 Note 1 0.75 Note 1 Note 1 75 .

2N3163-SSDI.pdf

2N3021 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N3021, 2N3163. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N3021, 2N3163

Manufacturer:

SSDI

File Size:

63.78 KB

Description:

Pnp transistor.

Note:

This datasheet PDF includes multiple part numbers: 2N3021, 2N3163.
Please refer to the document for exact specifications by model.
