2N4070 NPN Transistor

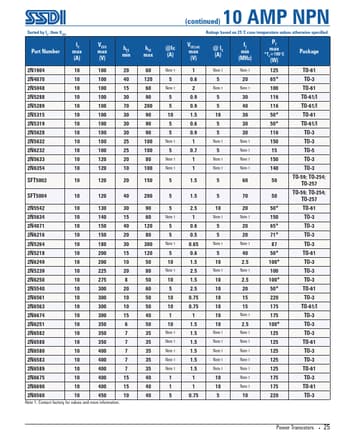

10 AMP NPN(continued) Sorted by IC, then VCEO Part Number mIaCx (A) mVCaExO (V) Ratings based on 25˚C case temperature unless otherwise specified mhFiEn mhaFEx @Ic (A) VmCEa(sxat) (V) @(A)IC mfTin (MHz) mPaTx TC=100°C (W) Package 2N1904 10 100 20 60 Note 1 1 Note 1 Note 1 125 TO-61 2N4070 10 100 40 120 5 0.6 5 20 65 TO-3 2N5048 10 100 15 60 Note 1 2 Note 1 Note 1 100 TO-61 2N5288 10 100 30 90 5 0.9 5 30 116 TO-61/I 2N5289 10 100 70 200 5 0.9 5 .

2N4070 Datasheet (27.34 KB)

2N4070 Datasheet Preview — Preview of 2N4070 PDF

Datasheet Details

Part number:

2N4070

Manufacturer:

SSDI

File Size:

27.34 KB

Description:

Npn transistor.
