SDA180E, SDA180A Datasheet - SSDI

SDA180E (SDA180x) RECTIFIER ASSEMBLY

SDA180E Features

* Average Output Current 15 Amps PIV 50 to 1000 Volts Max Thermal Resistance 1.5oC/Watt Glass Passivated Rectifier Cells Hermetically Sealed Choice of Three Terminal Configurations SSDI introduces a new and complete series of Ultra Fast Recovery Doublers and Center Tap Rectifier Circuits. Designed in

SDA180A_SSDI.pdf

This datasheet PDF includes multiple part numbers: SDA180E, SDA180A. Please refer to the document for exact specifications by model.

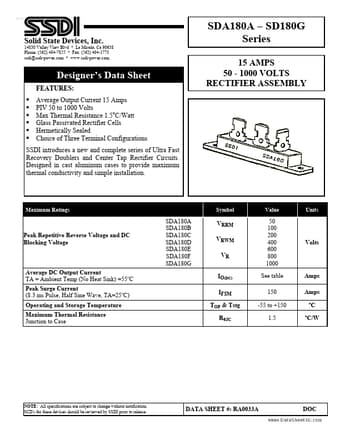

SDA180E Datasheet Preview Page 2

Datasheet Details

Part number:

SDA180E, SDA180A

Manufacturer:

SSDI

File Size:

140.41 KB

Description:

(sda180x) rectifier assembly.

Note:

This datasheet PDF includes multiple part numbers: SDA180E, SDA180A.
Please refer to the document for exact specifications by model.
