SDA403E - (SDA403A - SDA403G) 6 AMPS STANDARD RECOVERY THREE PHASE BRIDGE RECTIFIER ASSEMBLY

Product Overview

SSDI

Part number	SDA403E
Manufacturer	SSDI
File Size	51.12 KB
Description	(SDA403A - SDA403G) 6 AMPS STANDARD RECOVERY THREE PHASE BRIDGE RECTIFIER ASSEMBLY
Datasheet	SDA403E Datasheet
Note	This datasheet PDF includes multiple part numbers: SDA403E, SDA403A. Please refer to the document for exact specifications by model.

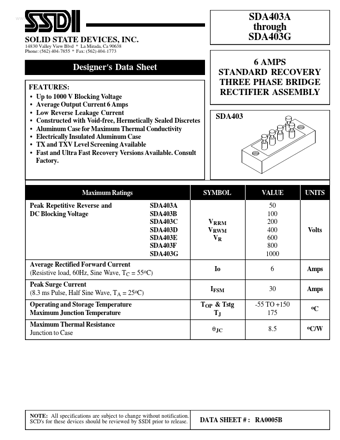

Additional preview pages of the SDA403E datasheet.

Up to 1000 V Blocking Voltage Average Output Current 6 Amps Low Reverse Leakage Current Constructed with Void-free, Hermetically Sealed Discretes Aluminum Case for Maximum Thermal Conductivity Electrically Insulated Aluminum Case TX and TXV Level Screening Available Fast and Ultra Fast Recovery Versions Available. Consult Factory. 1.30 Maximum Ratings Peak Repetitive Reverse and DC Blocking Voltage SDA403A SDA403B.
