SDA7500UF, SDA10000UF (SDA2500UF - SDA25000UF) ULTRAFAST RECOVERY RECTIFIER ASSEMBLY

SDA7500UF Description

www.DataSheet4U.com PRELIMINARY SOLID STATE DEVICES, INC.14830 Valley View Blvd * La Mirada, Ca 90638 Phone: (562) 404-7855 * Fax: (562) 40.

SDA7500UF Features

* • • • • • • • • • Average Output Current 0.5Amps 2500 to 25000 V Blocking Voltage Ultrafast Recovery: 80 nsec Maximum Low Reverse Leakage Current Corona Free Construction Glass Passivated Rectifiers Hermetically Sealed Discretes Superior Thermal Shock Resistance TX and TXV Level Screening Available

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SDA7500UF, SDA10000UF. Please refer to the document for exact specifications by model.

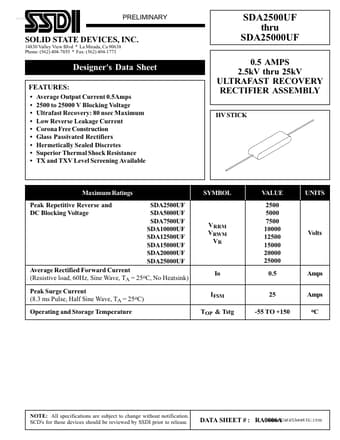

datasheet Preview Page 2

Datasheet Details

Part number
SDA7500UF, SDA10000UF
Manufacturer
SSDI
File Size
82.86 KB
Datasheet
SDA10000UF_SSDI.pdf
Description
(SDA2500UF - SDA25000UF) ULTRAFAST RECOVERY RECTIFIER ASSEMBLY
Note
This datasheet PDF includes multiple part numbers: SDA7500UF, SDA10000UF.
Please refer to the document for exact specifications by model.
