SDR12 Datasheet - SSDI

SDR12 STANDARD RECOVERY RECTIFIER

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com Designer’s Data Sheet Part Number/Ordering Information 1/ SDR12 ___ ___ ___ ││ ││ └ Screening 2/ __ = Not Screened ││ TX = TX Level ││ TXV = TXV ││ S = S Level │ └ Package Type │ ___ = Axial │ SMS = Surface Mount Square └ Tab Family/Voltage D = 200 V G = 400V J = 600 V K = 800 V M = 1000 V SDR12 Series 12 AMPS 200.

SDR12 Features

* Standard Recovery: 5 sec maximum

* PIV up to 1000 Volts

* High Current Operation up to 12 A

* Hermetically Sealed

* Single Chip Construction

* Low Thermal Resistance

* TX, TXV, and Space Level Screening Available2/

* Fast and Ultrafast Recovery Versions Available.

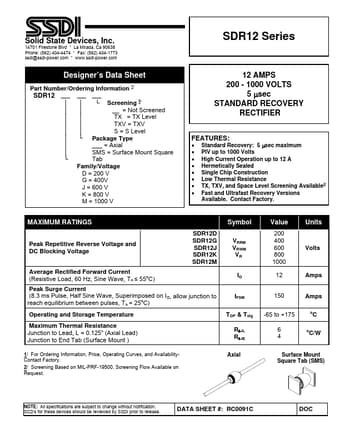

SDR12 Datasheet (94.66 KB)

SDR12 Datasheet Preview — Preview of SDR12 PDF

Datasheet Details

Part number:

SDR12

Manufacturer:

SSDI

File Size:

94.66 KB

Description:

Standard recovery rectifier.
