SDR12D STANDARD RECOVERY RECTIFIER

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com Designer’s Data Sheet Part Number/Ordering Information 1/ SDR12 ___ ___ ___ ││ ││ └ Screening 2/ __ = Not Screened ││ TX = TX Level ││ TXV = TXV ││ S = S Level │ └ Package Type │ ___ = Axial │ SMS = Surface Mount Square └ Tab Family/Voltage D = 200 V G = 400V J = 600 V K = 800 V M = 1000 V SDR12 Series 12 AMPS 200.

SDR12D Features

* Standard Recovery: 5 sec maximum

* PIV up to 1000 Volts

* High Current Operation up to 12 A

* Hermetically Sealed

* Single Chip Construction

* Low Thermal Resistance

* TX, TXV, and Space Level Screening Available2/

* Fast and Ultrafast Recovery Versions Available.

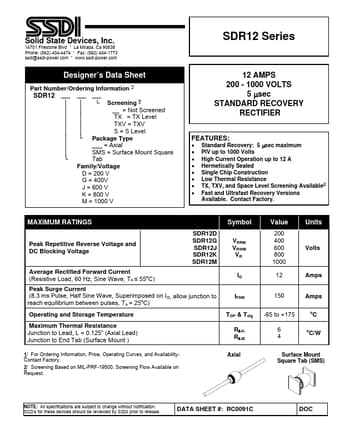

SDR12_SSDI.pdf

SDR12D Datasheet Preview — This datasheet PDF includes multiple part numbers: SDR12D, SDR12. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SDR12D, SDR12

Manufacturer:

SSDI

File Size:

94.66 KB

Description:

Standard recovery rectifier.

Note:

This datasheet PDF includes multiple part numbers: SDR12D, SDR12.
Please refer to the document for exact specifications by model.
