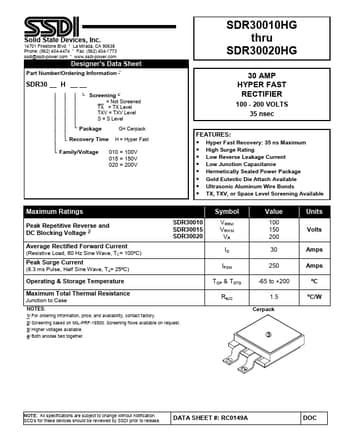

SDR30015HG - HYPER FAST RECTIFIER
Solid State Devices, Inc.
14701 Firestone Blvd La Mirada, CA 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com Designer’s Data Sheet Part Number/Ordering Information 1/ SDR30 __ H __ __ │ │ │ └ Screening 2/ │││ __ = Not Screened │││ │││ │││ TX = TX Level TXV = TXV Level S = S Level │ │ └ Package ││ G= Cerpack │ └ Recovery Time H = Hyper Fast │ └ Family/Voltage 010 = 100V 015 = 150V 020 = 200V SDR30010HG thru SDR30020HG 30 AMP H
SDR30015HG Features
* Hyper Fast Recovery: 35 ns Maximum
* High Surge Rating
* Low Reverse Leakage Current
* Low Junction Capacitance
* Hermetically Sealed Power Package
* Gold Eutectic Die Attach Available
* Ultrasonic Aluminum Wire Bonds
* TX, TXV, or S
