SDR30020HG HYPER FAST RECTIFIER

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, CA 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com Designer’s Data Sheet Part Number/Ordering Information 1/ SDR30 __ H __ __ │ │ │ └ Screening 2/ │││ __ = Not Screened │││ │││ │││ TX = TX Level TXV = TXV Level S = S Level │ │ └ Package ││ G= Cerpack │ └ Recovery Time H = Hyper Fast │ └ Family/Voltage 010 = 100V 015 = 150V 020 = 200V SDR30010HG thru SDR30020HG 30 AMP H.

SDR30020HG Features

* Hyper Fast Recovery: 35 ns Maximum

* High Surge Rating

* Low Reverse Leakage Current

* Low Junction Capacitance

* Hermetically Sealed Power Package

* Gold Eutectic Die Attach Available

* Ultrasonic Aluminum Wire Bonds

* TX, TXV, or S

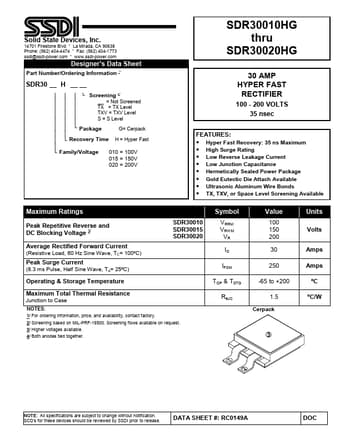

SDR30010HG-SSDI.pdf

SDR30020HG Datasheet Preview — This datasheet PDF includes multiple part numbers: SDR30020HG, SDR30010HG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SDR30020HG, SDR30010HG

Manufacturer:

SSDI

File Size:

115.19 KB

Description:

Hyper fast rectifier.

Note:

This datasheet PDF includes multiple part numbers: SDR30020HG, SDR30010HG.
Please refer to the document for exact specifications by model.
