SDR30020H-61 - HYPER FAST RECTIFIER

Product Overview

SSDI

📥 Download Datasheet

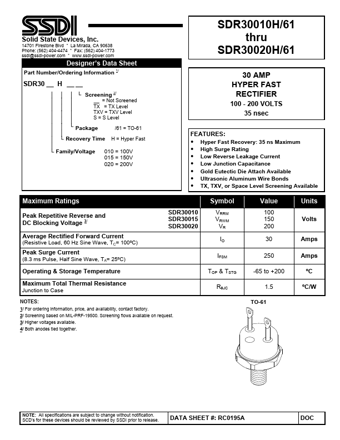

SDR30020H-61 HYPER FAST RECTIFIER by SSDI - Datasheet Preview — Datasheet preview – SDR30020H-61

Datasheet Details

Part number	SDR30020H-61
Manufacturer	SSDI
File Size	130.44 KB
Description	HYPER FAST RECTIFIER
Datasheet	SDR30020H-61 Datasheet
Note	This datasheet PDF includes multiple part numbers: SDR30020H-61, SDR30010H-61. Please refer to the document for exact specifications by model.
Additional preview pages of the SDR30020H-61 datasheet.

Product details

Features

Hyper Fast Recovery: 35 ns Maximum.
High Surge Rating.
Low Reverse Leakage Current.
Low Junction Capacitance.
Gold Eutectic Die Attach Available.
Ultrasonic Aluminum Wire Bonds.
TX, TXV, or Space Level Screening Available Maximum Ratings Peak Repetitive Reverse and DC Blocking Voltage 3/ Average Rectified Forward Current (Resistive Load, 60 Hz Sine Wave, TC= 100ºC) Peak Surg.
