SDR3006 - (SDR3004 - SDR3006) Ultrafast Rectifier

SSDI

📥 Download Datasheet

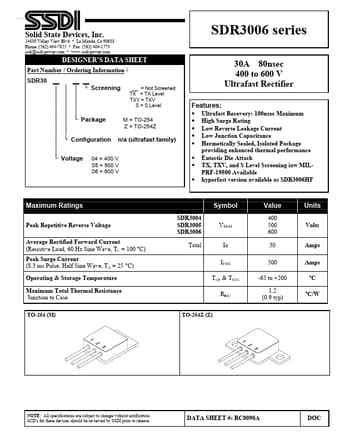

SDR3006 Datasheet Preview — Preview of SDR3006 PDF

datasheet Preview Page 2

Datasheet Details

Part number	SDR3006
Manufacturer	SSDI
File Size	192.09 KB
Description	(SDR3004 - SDR3006) Ultrafast Rectifier
Datasheet	SDR3006_SSDI.pdf

SDR3006 Product details

Features

Ultrafast Recovery: 100nsec Maximum High Surge Rating Low Reverse Leakage Current Low Junction Capacitance Hermetically Sealed, Isolated Package providing enhanced thermal performance Eutectic Die Attach TX, TXV, and S Level Screening iaw MILPRF-19500 Available hyperfast version available as SDR3006HF.
