SDR4005HF - (SDR4004HF - SDR4006HF) Hyper Fast Rectifier

Product Overview

SSDI

📥 Download Datasheet

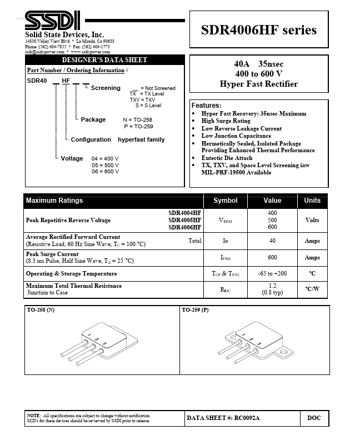

SDR4005HF (SDR4004HF - SDR4006HF) Hyper Fast Rectifier by SSDI - Datasheet Preview — Datasheet preview – SDR4005HF

Datasheet Details

Part number	SDR4005HF
Manufacturer	SSDI
File Size	193.43 KB
Description	(SDR4004HF - SDR4006HF) Hyper Fast Rectifier
Datasheet	SDR4005HF Datasheet
Note	This datasheet PDF includes multiple part numbers: SDR4005HF, SDR4006HF. Please refer to the document for exact specifications by model.
Additional preview pages of the SDR4005HF datasheet.

Product details

Features

Hyper Fast Recovery: 35nsec Maximum High Surge Rating Low Reverse Leakage Current Low Junction Capacitance Hermetically Sealed, Isolated Package Providing Enhanced Thermal Performance Eutectic Die Attach TX, TXV, and Space Level Screening iaw MIL-PRF-19500 Available.
