SDR4006HF - (SDR4004HF - SDR4006HF) Hyper Fast Rectifier

Product Overview

SSDI

📥 Download Datasheet

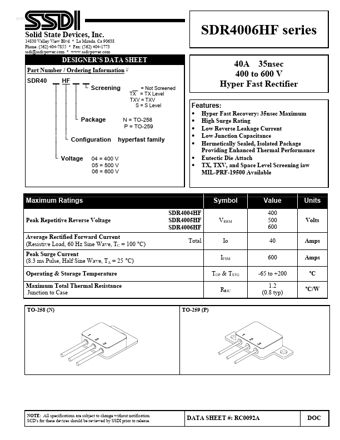

SDR4006HF (SDR4004HF - SDR4006HF) Hyper Fast Rectifier by SSDI - Datasheet Preview — Datasheet preview – SDR4006HF

Datasheet Details

Part number	SDR4006HF
Manufacturer	SSDI
File Size	193.43 KB
Description	(SDR4004HF - SDR4006HF) Hyper Fast Rectifier
Datasheet	SDR4006HF Datasheet
Additional preview pages of the SDR4006HF datasheet.

Product details

Features

Hyper Fast Recovery: 35nsec Maximum High Surge Rating Low Reverse Leakage Current Low Junction Capacitance Hermetically Sealed, Isolated Package Providing Enhanced Thermal Performance Eutectic Die Attach TX, TXV, and Space Level Screening iaw MIL-PRF-19500 Available.
