SDR4150 Datasheet - Solid States Devices

SDR4150 HYPER FAST RECOVERY RECTIFIER

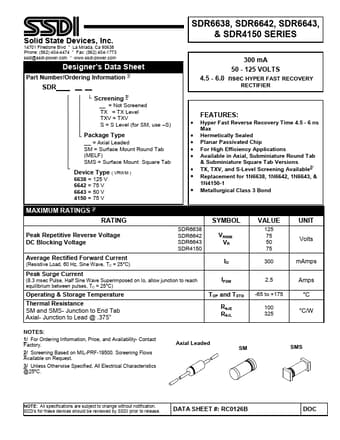

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com SDR6638, SDR6642, SDR6643, & SDR4150 SERIES 300 mA 50 - 125 VOLTS 4.5 - 6.0 nsec HYPER FAST RECOVERY RECTIFIER Designer’s Data Sheet Part Number/Ordering Information 1/ SDR____ __ __ │ │ │ │ │ │ │ │ │ │ │ └ │ └ Screening 2/ │ __ = Not Screened │ TX = TX Level │ TXV = TXV │ S = S Level (for SM, use S) │ └ Package Type __ .

SDR4150 Features

* Hyper Fast Reverse Recovery Time 4.5 - 6 ns Max Hermetically Sealed Planar Passivated Chip For High Efficiency Applications Available in Axial, Subminiature Round Tab & Subminiature Square Tab Versions 2/ TX, TXV, and S-Level Screening Ava

SDR4150 Datasheet (132.10 KB)
