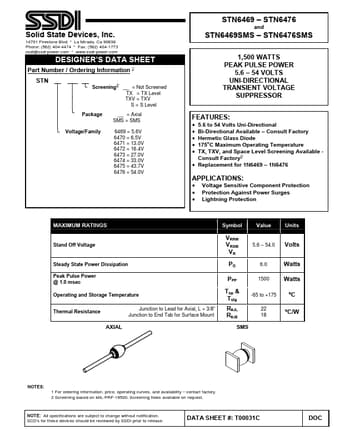

STN6469 Datasheet (SSDI) - UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

STN6469, UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

Solid State Devices, Inc.

14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com DESIGNER’S DATA SHEET Part Number / Ordering Information 1/ STN __ ___ __ │ │ └ Screening2/ __ = Not Screened ││ TX = TX Level ││ TXV = TXV ││ S = S Level │ │ └ Package __ = Axial SMS = SMS │ └ Voltage/Family 6469 = 5.6V 6470 = 6.5V 6471 = 13.0V 6472 = 16.4V 6473 = 27.0V 6474 = 33.0V 6475 = 43.7V 6476 = 54.0V

STN6469 Features

* 5.6 to 54 Volts Uni-Directional

* Bi-Directional Available

* Consult Factory

* Hermetic Glass Diode

* 175oC Maximum Operating Temperature

* TX, TXV, and Space Level Screening Available - Consult Factory2/

* Replacement for 1N6469

* 1
