SUM35F, SUM20F - (SUM20F - SUM50F) HIGH VOLTAGE RECTIFIER

SSDI

📥 Download Datasheet

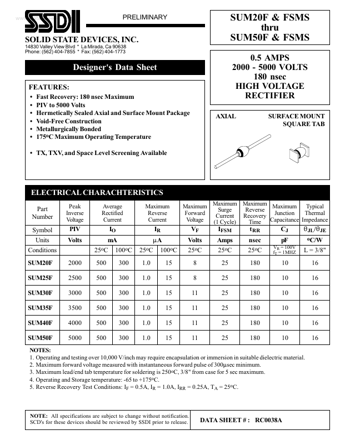

SUM35F Datasheet Preview — This datasheet PDF includes multiple part numbers: SUM35F, SUM20F. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

Datasheet Details

Part number	SUM35F, SUM20F
Manufacturer	SSDI
File Size	87.66 KB
Description	(SUM20F - SUM50F) HIGH VOLTAGE RECTIFIER
Datasheet	SUM20F_SSDI.pdf
Note	This datasheet PDF includes multiple part numbers: SUM35F, SUM20F. Please refer to the document for exact specifications by model.

SUM35F Product details

Features

Fast Recovery: 180 nsec Maximum PIV to 5000 Volts Hermetically Sealed Axial and Surface Mount Package Void-Free Construction Metallurgically Bonded 175oC Maximum Operating Temperature 1.30 TX, TXV, and Space Level Screening Available.
