SUM60FSMS (SUM60FSMS - SUM90FSMS) FAST RECOVERY RECTIFIER

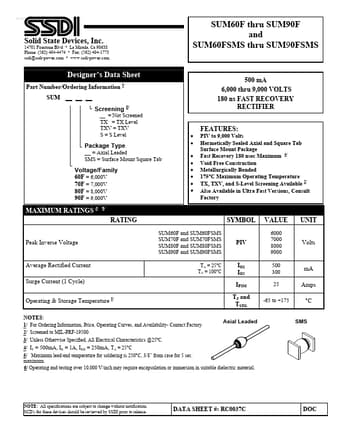

www.DataSheet4U.com Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com SUM60F thru SUM90F and SUM60FSMS thru SUM90FSMS Designer’s Data Sheet Part Number/Ordering Information 1/ SUM __ __ __ │ │ │ │ │ │ │ │ │ └ │ └ Screening 2/ │ __ = Not Screened │ TX = TX Level │ TXV = TXV │ S = S Level │ └ Package Type __ = Axial Leaded SMS = Surface Mount Square Tab 500 mA 6,000 thru 9,000 VO.

SUM60FSMS Features

* PIV to 9,000 Volts Hermetically Sealed Axial and Square Tab Surface Mount Package Fast Recovery 180 nsec Maximum 4/ Void Free Construction Metallurgically Bonded 175°C Maximum Operating Temperature TX, TXV, and S-Level Screening Available 2/ Also Available in Ultra Fast Versions, Consult Factory

SUM60F_SSDI.pdf

SUM60FSMS Datasheet Preview — This datasheet PDF includes multiple part numbers: SUM60FSMS, SUM60F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SUM60FSMS, SUM60F

Manufacturer:

SSDI

File Size:

173.14 KB

Description:

(sum60fsms - sum90fsms) fast recovery rectifier.

Note:

This datasheet PDF includes multiple part numbers: SUM60FSMS, SUM60F.
Please refer to the document for exact specifications by model.
