SUM60N04-12LT Datasheet, Mosfet, Vishay Siliconix

SUM60N04-12LT Features

  • Mosfet D D D D D D D D D Temperature-Sense Diodes for Thermal Shutdown TrenchFETr Power MOSFET 175_C Maximum Junction Temperature ESD Protected: 2000 V Logic-Level Low On-Resistance Avalanche

PDF File Details

Part number:

SUM60N04-12LT

Manufacturer:

Vishay ↗ Siliconix

File Size:

89.56kb

Download:

📄 Datasheet

Description:

N-channel mosfet. The SUM60N04-12LT is a 40-V n-channel, 15-mW logic level MOSFET in a 5-lead D2PAK package built on the Vishay Siliconix proprietary h

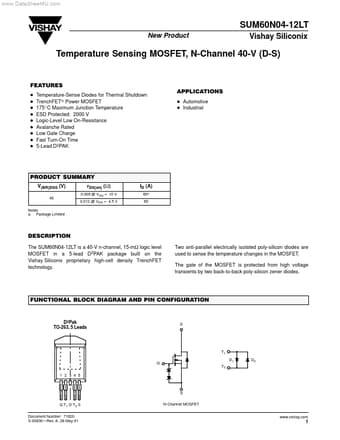

Datasheet Preview: SUM60N04-12LT 📥 Download PDF (89.56kb)
Page 2 of SUM60N04-12LT Page 3 of SUM60N04-12LT

SUM60N04-12LT Application

  • Applications D Automotive D Industrial PRODUCT SUMMARY V(BR)DSS (V) 40 Notes a. Package Limited rDS(on) (W) 0.009 @ VGS = 10 V 0.012 @ VGS = 4.5 V
