SST12LP15A - High-Power and High-Gain Power Amplifier

Datasheet Summary

Description

The SST12LP15A is a high-power and high-gain power amplifier based on the highly-reliable InGaP/GaAs HBT technology.

The SST12LP15A can be easily configured for high-power applications with superb power-added efficiency while operating over the 2.4-2.5 GHz frequency band.

Features

  • High Gain:.
  • Typically 32 dB gain across 2.4.
  • 2.5 GHz over temperature 0°C to +85°C High linear output power:.
  • >29 dBm P1dB - Please refer to “Absolute Maximum Stress Ratings” on page 4.
  • Meets 802.11g OFDM ACPR requirement up to 25 dBm.
  • Added EVM~4% up to 23 dBm for 54 Mbps 802.11g signal.
  • Added EVM~3.5% up to 23 dBm for.

📥 Download Datasheet

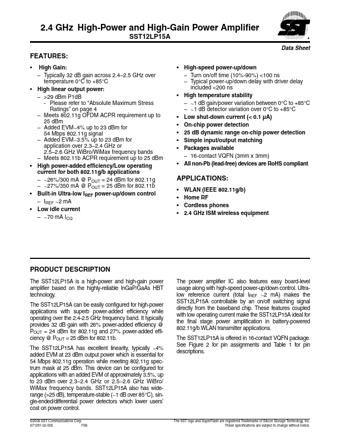

Datasheet preview – SST12LP15A

Datasheet Details

Part number SST12LP15A
Manufacturer SST
File Size 304.52 KB
Description High-Power and High-Gain Power Amplifier
Datasheet download datasheet SST12LP15A Datasheet
Additional preview pages of the SST12LP15A datasheet.

📁 Similar Datasheet

  • SST12LP15B - 256 QAM Power Amplifier (Microchip)
  • SST12LP14C - High-Gain Power Amplifier (Silicon Storage Technology)
  • SST12LP17E - High-Gain Power Amplifier Module (Microchip)
  • SST12LP19E - High-Efficiency Power Amplifier (Microchip)
  • SST12LP07 - High-Gain Power Amplifier (Silicon Storage Technology)
  • SST12LP07A - High-Gain Power Amplifier (Silicon Storage Technology)
  • SST12LP08 - High-Gain Power Amplifier (Silicon Storage Technology)
  • SST12LF02 - High-Efficiency FEM (Microchip)
  • SST12LF03 - High-Efficiency Front-end (Silicon Storage Technology)
  • SST12LF09 - WLAN Front-End Module (Microchip)
Other Datasheets by SST

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 2.4 GHz High-Power and High-Gain Power Amplifier SST12LP15A SST-GP1215A2.4 GHz High Gain High Power PA Data Sheet FEATURES: • High Gain: – Typically 32 dB gain across 2.4–2.5 GHz over temperature 0°C to +85°C High linear output power: – >29 dBm P1dB - Please refer to “Absolute Maximum Stress Ratings” on page 4 – Meets 802.11g OFDM ACPR requirement up to 25 dBm – Added EVM~4% up to 23 dBm for 54 Mbps 802.11g signal – Added EVM~3.5% up to 23 dBm for application over 2.3–2.4 GHz or 2.5–2.6 GHz WiBro/WiMax frequency bands – Meets 802.11b ACPR requirement up to 25 dBm High power-added efficiency/Low operating current for both 802.11g/b applications – ~26%/300 mA @ POUT = 24 dBm for 802.11g – ~27%/350 mA @ POUT = 25 dBm for 802.
