25P40

M25P40

ST Microelectronics

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Amphenol Industrial Operations	PT00SE-22-25P(404)	RECEPT	DigiKey	0	10 units	$178.01	🛒 Buy Now

25P40 Datasheet (386.77 KB)

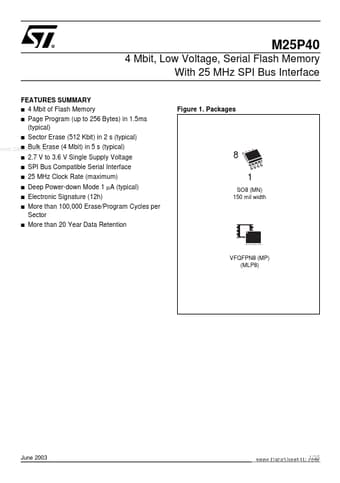

25P40 Datasheet Preview — Preview of 25P40 PDF

Datasheet Details

Part number:

25P40

Manufacturer:

STMicroelectronics ↗

File Size:

386.77 KB

Description:

M25p40.

25P40 Features

* SUMMARY s 4 Mbit of Flash Memory s Figure 1. Packages Page Program (up to 256 Bytes) in 1.5ms (typical) Sector Erase (512 Kbit) in 2 s (typical) (4 Mbit) in 5 s (typical) 2.7 V to 3.6 V Single Supply Voltage SPI Bus Compatible Serial Interface 25 MHz Clock Rate (maximum) Deep Power-down Mode 1 µA

25P40 General Description

The M25P40 is a 4 Mbit (512K x 8) Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The memory is organized as 8 sectors, each containing 256 pages. E.
