25P05 Datasheet - STMicroelectronics

25P05 - M25P05

The M25P05 is a 512 Kbit (64K x 8) Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus.

The memory can be programmed 1 to 128 bytes at a time, using the Page Program instruction.

The memory is organized as 2 sectors, each containing 256 pages.

25P05 Features

* SUMMARY This device is now designated as “Not for New Design”. Please use the M25P05-A in all future designs (as described in application note AN1511). s 512 Kbit of Flash Memory s Figure 1. Packages Page Program (up to 128 Bytes) in 3 ms (typical) Sector Erase (256 Kbit) in 1 s (typical) Bulk Era

25P05_STMicroelectronics.pdf

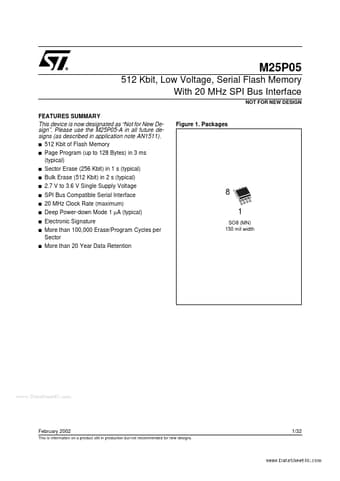

Preview of 25P05 PDF
25P05 Datasheet Preview Page 2 25P05 Datasheet Preview Page 3
