25P10 - 1 Mbit Low Voltage Paged Flash Memory

The M25P10 is an 1 Mbit Paged Flash Memory fabricated with STMicroelectronics High Endurance CMOS technology.

The memory is accessed by a simple SPI bus compatible serial interface.

The bus signals are a serial clock input (C), a serial data input (D) and a serial data output (Q).

The device connect

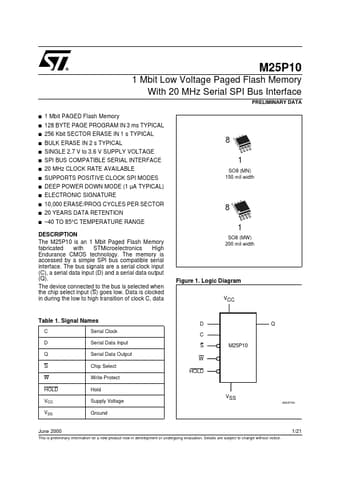

M25P10 1 Mbit Low Voltage Paged Flash Memory With 20 MHz Serial SPI Bus Interface PRELIMINARY DATA s 1 Mbit PAGED Flash Memory s 128 BYTE PAGE PROGRAM IN 3 ms TYPICAL s 256 Kbit SECTOR ERASE IN 1 s TYPICAL s BULK ERASE IN 2 s TYPICAL s SINGLE 2.7 V to 3.6 V SUPPLY VOLTAGE s SPI BUS COMPATIBLE SERIAL INTERFACE s 20 MHz CLOCK RATE AVAILABLE s SUPPORTS POSITIVE CLOCK SPI MODES s DEEP POWER DOWN MODE (1 µA TYPICAL) s ELECTRONIC SIGNATURE s 10,000 ERASE/PROG CYCLES PER SECTOR s 20 YEARS DATA RETENTI

25P10 Features

* of the device are summarized in Table 3. Figure 4. Hold Condition Activation CLOCK HOLD PIN MEMORY STATUS ACTIVE HOLD ACTIVE HOLD ACTIVE AI02029B 3/21 M25P10 Figure 5. M25P10-Compatible SPI Modes CPOL CPHA 00 C 11 C D or Q MSB LSB AI01438 Clock Polarity (CPOL) and Clock Phase (CPHA
