BYV54HR

Aerospace 40 A - 200 V fast recovery rectifier

ST Microelectronics

BYV54HR Features

* Very small conduction losses Negligible switching losses High surge current capability High avalanche energy capability Hermetic package Target radiation qualification:

* 150 krad (Si) low dose rate

* 1 Mrad high dose rate Package mass: 10 g ESCC

BYV54HR General Description

Packaged in a hermetic TO-254AA, this device is intended for use in medium voltage, high frequency switching mode power supplies, high frequency DC to DC converters, and other aerospace applications. The complete ESCC specification for this device is available from the European space agency web site.

BYV54HR Datasheet (103.00 KB)

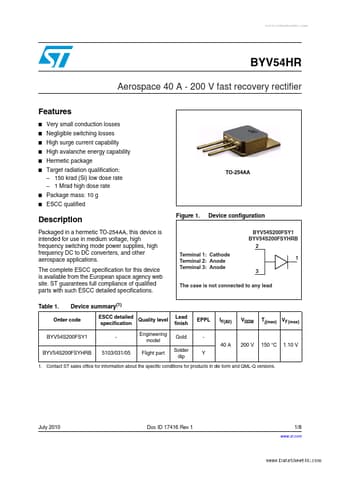

BYV54HR Datasheet Preview — Preview of BYV54HR PDF

Datasheet Details

Part number:

BYV54HR

Manufacturer:

STMicroelectronics ↗

File Size:

103.00 KB

Description:

Aerospace 40 a - 200 v fast recovery rectifier.
