BYV50MW-650PT2 - Ultrafast power diode

BYV50MW-650PT2 Description

BYV50MW-650PT2 Ultrafast power diode Rev.02 - 25 January 2024 Product data sheet 1.General .
Ultrafast power diode in a TO247-2L plastic package. 650V FRD. Low thermal resistanc.

BYV50MW-650PT2 Features

* 650V FRD
* Low thermal resistance
* Low forward voltage drop
* Low leakage current & reverse recovery current

BYV50MW-650PT2 Applications

* NPC-I in UPS
* LLC in EV charger
* PFC in air conditioner or welding machine
* Power Factor Correction (PFC)
* 2nd rectification in HB/FB SMPS 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Absolute maximum rating VRR

📥 Download Datasheet

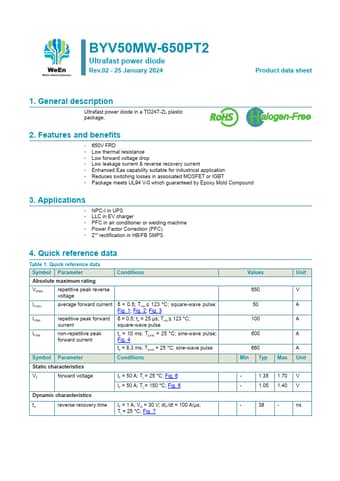

Preview of BYV50MW-650PT2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BYV50MW-650PT2
Manufacturer
WeEn
File Size
532.16 KB
Datasheet
BYV50MW-650PT2-WeEn.pdf
Description
Ultrafast power diode
