BYV10ED-600P - Ultrafast power diode

Datasheet Summary

Description

Enhanced ultrafast power diode in a TO252 (DPAK) plastic package.

2.

Features

  • High thermal cycling performance.
  • Soft recovery characteristic.
  • Low on-state losses.
  • Surface-mountable package.
  • Low thermal resistance.
  • Enhanced avalanche energy capability 3.

📥 Download Datasheet

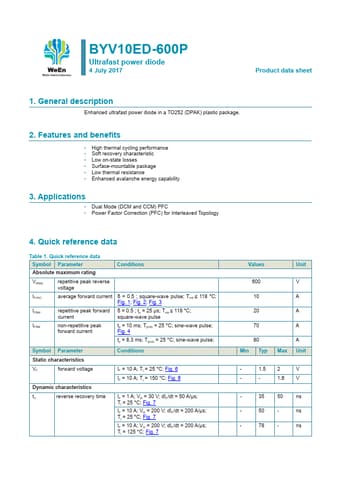

Datasheet preview – BYV10ED-600P

Datasheet Details

Part number BYV10ED-600P
Manufacturer WeEn
File Size 707.06 KB
Description Ultrafast power diode
Datasheet download datasheet BYV10ED-600P Datasheet
Additional preview pages of the BYV10ED-600P datasheet.

📁 Similar Datasheet

  • BYV10ED-600P - Ultrafast power diode (NXP)
  • BYV10-20 - Schottky barrier diodes (NXP)
  • BYV10-30 - Schottky barrier diodes (NXP)
  • BYV10-40 - SMALL SIGNAL SCHOTTKY DIODES (STMicroelectronics)
  • BYV10-40 - Schottky barrier diodes (NXP)
  • BYV10-60 - SMALL SIGNAL SCHOTTKY DIODE (STMicroelectronics)
  • BYV10-600P - Ultrafast power diode (NXP)
  • BYV10X-600P - Ultrafast power diode (NXP)
  • BYV1100 - Fast soft-recovery rectifier (NXP)
  • BYV116 - Rectifier diodes Schottky barrier (NXP)
Other Datasheets by WeEn

Full PDF Text Transcription

Click to expand full text
BYV10ED-600P Ultrafast power diode 4 July 2017 Product data sheet 1. General description Enhanced ultrafast power diode in a TO252 (DPAK) plastic package. 2. Features and benefits • High thermal cycling performance • Soft recovery characteristic • Low on-state losses • Surface-mountable package • Low thermal resistance • Enhanced avalanche energy capability 3. Applications • Dual Mode (DCM and CCM) PFC • Power Factor Correction (PFC) for Interleaved Topology 4. Quick reference data Table 1. Quick reference data Symbol Parameter Absolute maximum rating Conditions VRRM IF(AV) IFRM IFSM repetitive peak reverse voltage average forward current repetitive peak forward current non-repetitive peak forward current δ = 0.5 ; square-wave pulse; Tmb ≤ 118 °C; Fig. 1; Fig. 2; Fig. 3 δ = 0.
